Overview

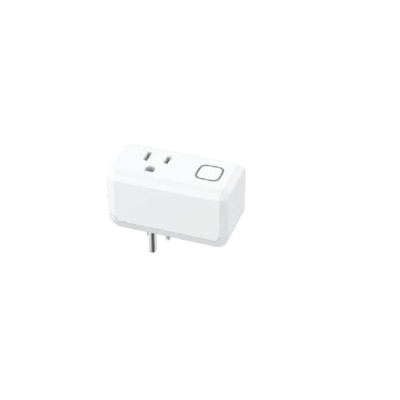

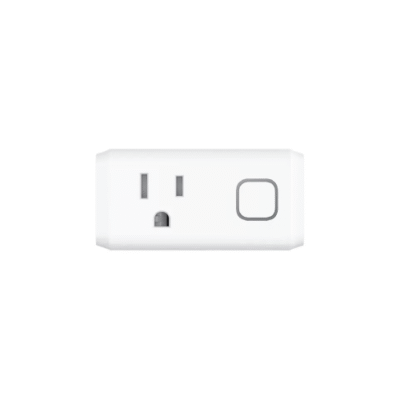

The Inventory Master’s Smart Beacon Bridge Plug with WiFi & BLE Connectivity serves as a data bridge between beacon devices and your cloud server. It supports uplink communication, collecting beacon advertising data through Bluetooth and uploading it to the server via WiFi. Additionally, it enables downlink communication, allowing users to manage beacon devices remotely through the cloud by sending commands to the gateway. This device is ideal for real-time location services, condition monitoring, asset tracking, and personal safety management.
Features
- Mini size and compact design
- Interchangeable AC plug, can be commonly used in many countries
- Flexible power supply method
- Easily integrated to work with your own server for further development application
- Schematic diagram can be provided for free to help quickly develop your firmware
Technical Specifications
| Function | APP Remote Control, work alexa & google home |
| Feature | Mini |
| Material | ABS + PC |
| Color | White, black |
| Module available | Nordic nRF52 series SoC (ble 4.2 and ble 5.0) |
| Platforms | Support EMQTT, Mosquito and other MQTT servers, Also can work with AWS and Aliyun IOT |
| Advertising Format and Protocols | iBeacon(UUID,Major,Minor,RSSI@1m) Eddystone(UID/URL/TLM/Eddystone Configuration GATT Service) |

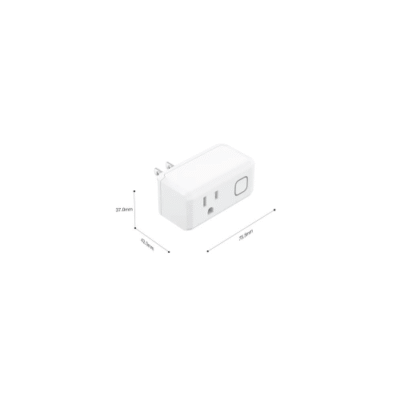

| Dimensions(LxWxH) | 2.97 in x 1.65 in x 1.46 in 75.5 mm x 42 mm mm x 37 mm) |
Click Here to Download Technical
Documentation (User Manual or Instruction Manual)
