Overview

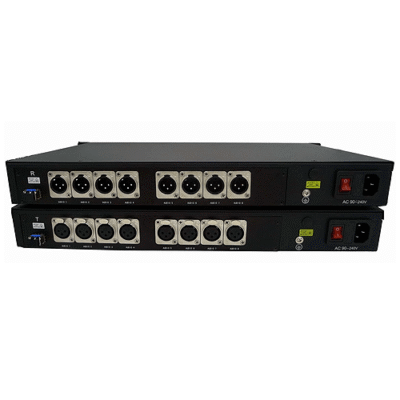

The Inventory Master 8-Channel XLR Audio Converter with 16-Bit Digital Encoding Over Fiber Optic. These fibre optic transmitters and fibre optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast or Studio, CCTV audio and Professional AV applications, etc., and are available for stand-alone or rack or mount installations. FC, ST, SC or LC optical connectors is optional. Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system’s operating status.
Technical Specifications
| Wavelength | 1310 nm & 1470 nm or 1610 nm |
| Outer Power | -9 dBm to -3 dBm or -5 dBm to 0 dBm |
| Optic Fiber | 50 or 125 u multimode，62.5 or 125u multimode，9 or 125 u single mode |
| Rx Sensitivity | -25 dBm |
| Optical Connector | FC or ST or SC or LC (optional) |
| Number Of Channels | 8 |
| Input Connector | XLR (female) |
| Output Connector | XLR (male) |
| Power Adapter | AC 90 V to 240 V |
| Power Consumption | <8 W |
| Relative Humidity | 0% to 95% |
| Operating Temperature | -4 °F to 167 °F (-20 °C to +75 °C) |
