Features
- High Resolution Display
- Dual-Channel Operation
- Accurate Fault Location
- Robust Build Quality
Technical Specifications

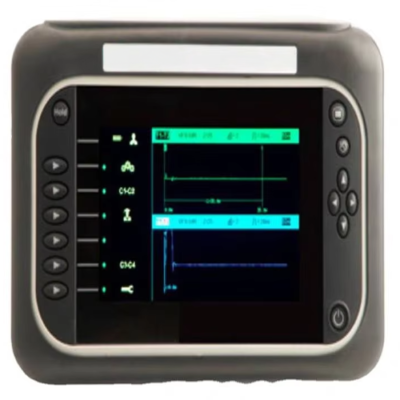

| Display | High-resolution color WVGA display with backlight for clear visibility |
| Operation Modes | Auto setup mode for immediate use; manual mode for detailed adjustments |
| Fault Location Features | AutoFind and FindEnd functions to quickly identify faults and cable ends |
| Trace Storage | Internal memory capable of storing up to 100 traces for future analysis |
| Data Connectivity | USB port for downloading and uploading traces using TraceXpert software |
| Range | Up to 66,000 ft (20,000 m) on most cables |
| Pulse Width | Adjustable 2 to 20 µs for optimal resolution and range |
| Resolution | Down to 3.3 ft (1 m) for precise fault detection |
| Impedance Matching | Adjustable from 25 to 125 ohms for compatibility with various cable types |
| Gain Control | Automatic or manual gain control for enhanced trace visibility |
| Battery Life | Rechargeable Li-ion battery providing up to 12 hours of typical use |
| Operating Temperature | 5°F to 122°F (-15°C to 50°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Dimensions | 11.4 in x 7.5 in x 2.2 in (29 cm x 19 cm x 5.5 cm) |
| Weight | 3.8 lbs (1.7 kg) |
