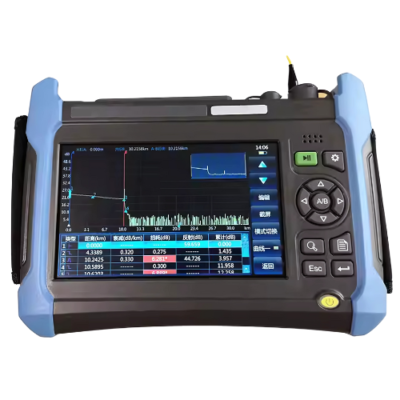

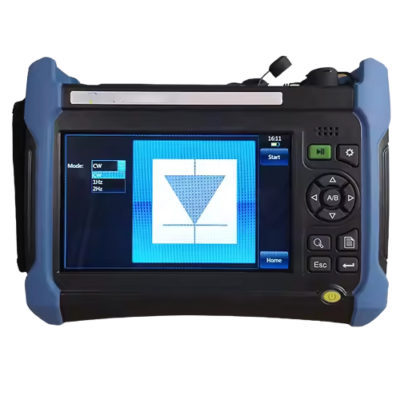

Features
- 50dB Dynamic Range
- PON Network Testing
- Mono/Multi-Mode Support
- Signal Auto Monitoring
Technical Specifications
| Maximum Dynamic Range | See the “Technical specifications for each standard module of OTDR” for more information. |
| Range Unit | km, m, thousand feet, feet |
| Display | 800 × 480, 7-inch TFT color LCD (a capacitive touch screen in the standard configuration, and a resistive touch screen optional) |
| Optical Output Interface | FC/UPC (standard configuration, with LC/UPC, SC/UPC and ST/UPC optional) |
| Interface Language | Simplified Chinese, English, Russian and Korean available (contact the office for other language support) |
| External Interfaces | USB, Micro-USB, 10M/100 M Ethernet, earphone and Micro SD |
| Range Unit | km, m, thousand feet, feet |
| Display | 800×480, 7-inch TFT color LCD (a capacitive touch screen in the standard configuration, and a resistive touch screen optional) |
| Ranging Accuracy | ±(0.75 + sample interval + 0.0025% × range)(excluding the refractivity placement error) (m) |
| Ranging Resolution | 0.16 ft, 0.32 ft, 0.65 ft, 1.64 ft, 3.28 ft, 6.56 ft, 13.12 ft, 26.24 ft, 52.49 ft, 104 ft (0.05 m, 0.1 m, 0.2 m, 0.5 m, 1 m, 2 m, 4 m, 8 m, 16 m and 32 m) |
| Test Range | 0.24 mi, 9.49 mi, 0.99 mi, 1.98 mi, 3.97 9.94 mmi, 19.88 mi, 39.76 mi, 79.53 mi, 159 mi, 318 mi (0.4 km, 0.8 km, 1.6 km, 3.2 km, 6.4 km, 16 km, 32 km, 64 km, 128 km, 256 km and 512 km) (mono-mode); 0.24 mi, 9.49 mi, 0.99 mi, 1.98 mi, 3.97 9.94 mmi, 19.88 mi (0.4 km, 0.8 km, 1.6 km, 3.2 km, 6.4 km, 16 km and 32km (850nm multi-mode) |
| Testing PW | 3, 5, 10, 30, 80, 160, 320, 640, 1280, 5120, 10240 and 20480 ns 3, 5, 10, 30, 80, 160, 320, 640 and 1280 ns(850nm multi-mode) |
| Maximum Number of Sampling Points | 256 k |
| Linearity | 0.03 dB/dB |
| Loss Resolution | 0.001 dB |
| Refractivity Setting Range | 1.00000 to 1.99999(step: 0.00001) |
| Power Supply | AC/DC adapter: AC100 V to 240 V, 50/60Hz and 1.5 A; DC: 17 V±3 V(2A) Internal Li battery: 11.1 V, 6800 mAh, battery operating time: 8 h |
| Power Consumption | 10 W |
| Dimensions | 9.91 in x 7.08 in x 2.16 in (25.2 cm × 18 cm × 5.5 cm) |
| Weight | About 0.063 oz (1.8 kg) |
