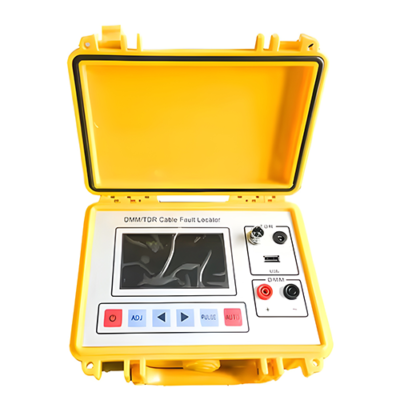

Features
- Adjustable Pulse Width
- Wide Voltage Range
- Multiple Measurement Modes
- Long Continuous Working Time
- Compact and Portable Design
Technical Specifications
| Pulse Reflection Test Maximum Range | 4.97 miles / 9.94 miles / 19.88 miles (8 km / 16 km / 32 km optional) |
| Test Blind Zone | 0 ft |
| Test Accuracy | Up to 3.28 ft (1 m) |
| Pulse Width | 40ns to 10μs automatic adjustment |
| Automatic Impedance Balance Adjustment | Yes |
| Gain Adjustment | Automatic and manual combination |
| Testable DC Voltage | -400 V to 400 V |
| Testable AC Voltage | 0 V to 290 V |
| Testable Circuit Capacitance | 0 nF to 1000 nF |
| Accuracy (Capacitance) | 0 nF to 10 nF: ± 2 nF, 10 nF to 1000 nF: ±2% ±2 nF |
| Measure Ring Resistance | 0 Ω to 20 kΩ |
| Accuracy (Resistance) | 0 Ω to 100 Ω: ±3% ±4Ω, 100 Ω to 500 Ω: ±3%, 500 KΩ to 20 KΩ: ±2% |
| Insulation Resistance | 0 MΩ to 30 MΩ |
| Accuracy (Insulation Resistance) | 0 MΩ to 1.0 MΩ: ±0.1 MΩ, 1.0 MΩ to 30 MΩ: ±10% ±0.5 MΩ |
| Charging Time | About 3.5 hours |
| Continuous Working Time | 8 hours after full charge |
| Volume | 8.27 in x 6.53 in x 3.54 in (21 cm x 16.6 cm x 9 cm) |
| Weight | 2.2 lbs (1 kg) |
