Overview

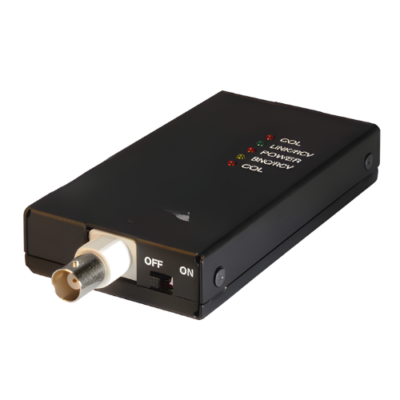

Media converter is designed to connect your existing Thin Ethernet adapter card or Thin Ethernet Network to a 10Base-T UTP network. This converter repeats signals from Thin Ethernet for transmission over Unshielded Twisted-Pair (UTP) cable to a 10Base-T hub (Includes external 12V DC power supply)
Technical Specifications
| Specification | Details |
| Standard | IEEE 802.3 10Base-T Ethernet, 10Base-2 Thinnet standards |
| Interface | BNC connector for thin Ethernet, RJ-45 jack for 10Base-T Ethernet |
| Cable Type | RG-58 coaxial cable for 10Base-2 connection; Category 3, 5/5e/6 UTP for 10Base-T connection |
| Technique | Baseband |
| Connection Switch | Two-position switch for hub or workstation settings |
| Terminator Switch | Two-position (on/off) switch for BNC |
| Temperature | 0°C to 55°C (standard operating) |
| Humidity | 10% to 90% (non-condensing) |
| Dimensions | 4.2″ x 2.2″ x 0.8″ |
| Power Adapter | 12V DC input, 1 Amp |
| EMI | Meets FCC Class A Subpart B of Part 15 requirements |
