Features

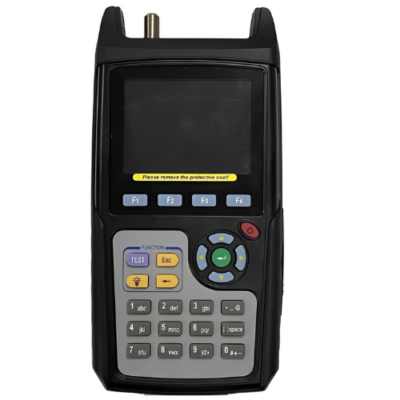

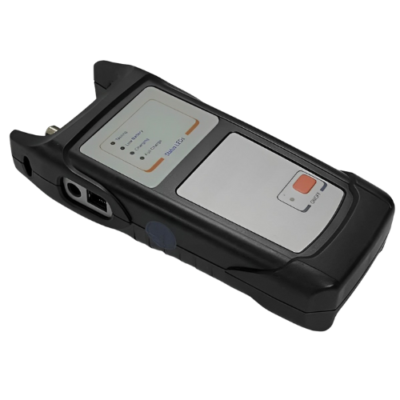

- Contains a main unit and a remote unit
- Multi connector: one RJ45 connector for UTP/STP data cable testing, one F connector for coax testing, one RJ11 connector for telephone cable testing and two banana jacks for 2-wires testing
- Support International standard ISO/IEC 11801 and American standard TIA/EIA-568-B
- One generator
- Two additional functions: Ping and BER Test
- Store at least 100 results
- Toolbox software to analyze the results on PC
Technical Specifications
| Length Range (UTP) | 0 m to 176 m (0 ft to 577.4 ft) |
| Length Resolution | 0.1 m (0.33 ft) |
| Length Accuracy | ±1.5 m (±4.92 ft) |
| Length Range (Coax) | 0 m to 200 m (0 ft to 656.17 ft) |
| Propagation Delay | 0 ns to 850 ns |
| Propagation Delay Accuracy | 1 ns ±7 ns |
| Delay Skew | 0 ns to 100 ns |
| Delay Skew Resolution | 1 ns |
| DC Resistance Accuracy | 10 ±15 ns +2 Ω |
| RF Frequency | 1 MHz to 250 MHz |
| NEXT, Return Loss, ELFEXT | 1 to 31.25 MHz: 150 kHz, 31.25 MHz to 100 MHz: 250 kHz, 100 MHz to 250 MHz: 500 kHz |
| Insertion Loss (Frequency) | 1 MHz to 250 MHz: 1 MHz |
| NEXT Range | 0 dB to 70 dB |
| Insertion Loss Range | 0 dB to 40 dB |
| Insertion Loss Accuracy | ±2 dB (0.1 dB resolution) |
| Testing Interface | RJ45, RJ11, F, Banana Jacks |
| Power Supply (Main Unit) | 7.4 V / 2.4 AH Lithium battery |
| Power Supply (Remote Unit) | 7.4 V / 1.1 AH Lithium battery |
| Main Unit Dimension | 8.74 in x 4.25 in x 2.24 in (22.2 x 10.8 x 5.7 cm) |
| Remote Unit Dimension | 7.24 in x 3.27 in x 1.73 in (18.4 x 8.3 x 4.4 cm) |
| Main Unit Weight | 1.76 lb (0.8 kg) |
| Remote Unit Weight | 0.88 lb (0.4 kg) |
