Features
- High Performance with a Compact Size
- Integrating 3G and Long-Term Evolution (LTE) or Wi-Fi access.
- Maximize ROI
- Integrated routing, switching, security, and wireless functions
- Comprehensive Platform
- HW’s Versatile Routing Platform (VRP) operating system
- Combined with a modular, fan-free design, is widely implemented and fully stable
Technical Specifications
| Network | Wireless LAN, Wi-Fi, 4G |
| Chassis Height | 1U |
| CPU | 1.1 GHz, 2 Cores |
| Memory | 1GB |
| NAND Flash | 1GB |
| Max power consumption | 24W |
| Max input current | 0.8A |
| Power supply mode | AC external |
| USB port | 1 x USB |
| Forwarding Performance (LAN -> WAN + WAN -> LAN, NAT + ACL + QoS, IMIX) | 300 Mbps |
| IPsec Performance (IMIX) | 200 Mbps |
| SD-WAN performance (1400 Bytes) | 250 Mbps |
| SD-WAN performance (IMIX) | 80 Mbps |

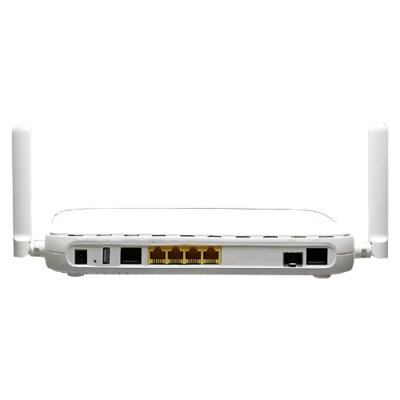

| Fixed WAN Ports | 1 x GE combo |
| Fixed LAN Ports | 4 x GE RJ45 (can be configured as WAN) |
| Auxiliary or console port | 1 x RJ45 console port |
| Wi-Fi | Dual band (2.4 GHz and 5 GHz), 802.11b or g or n or ac |
| Dimensions (H x W x D) | 3.54 in x 14.57 in x 11.69 in (9.0 cm x 37.0 cm x 29.7 cm) |
| Weight | 3.31 lbs (1.5 kg) |
