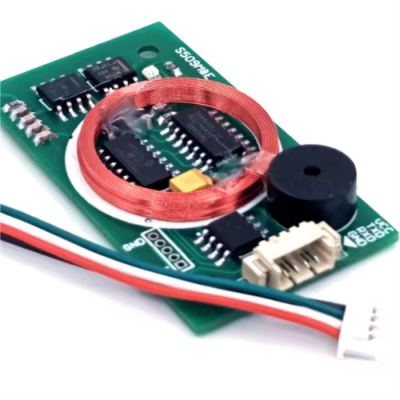

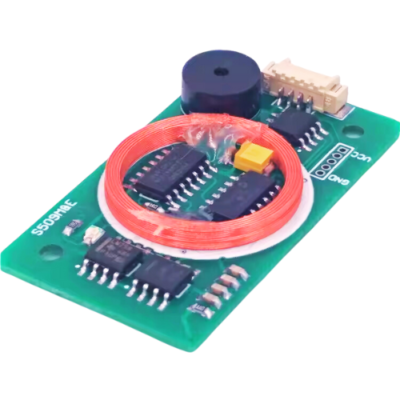

Dual Frequency RFID Reader Module with 125 KHz & 13.56 MHz – The Inventory Master

Frequency 13.56 MHz, ISO/IEC 14443 A/B, features a compact design, UART communication, low power consumption, high reliability, and easy integration.

SKU: TIMHF-3546 Category:

Technical Specifications

Frequency13.56MHz
Read-Write ChipMFRC500, MFRC400, MFRC531, MFRC632
Baud Rate9600-115200bit/s (Configurable, default 9600)
Sheathing MaterialABS
Power Supply/CurrentDC 5V/3.3V (±5%) / < 70mA
InterfaceRS232, RS485, TTL
Working Distance>1.97 in (50mm) (Depending on label size and antenna technology)
Operating Temperature14°F to 158°F (-10℃ to +70℃)
Storage Temperature-4°F to 176°F (-20℃ to +80℃)
ApplicationAccess Control, Attendance Management, Parking Lot, Identification, Ladder Control, etc.
Dimension1.77 in x 1.38 in x 0.35 in (45mm x 35mm x 9mm)
