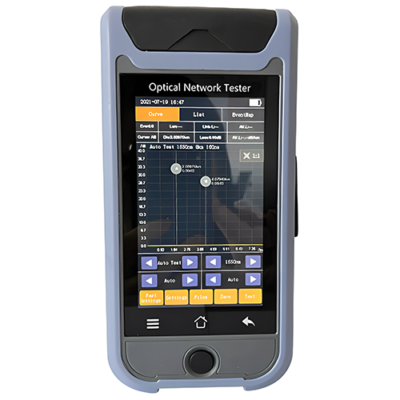

Features
- Compact handheld design
- Advanced fiber fault detection
- Multiple wavelength compatibility
- User-friendly touch interface
- Long-lasting battery life
- Event mapping functionality
- IOLM support included
- Versatile adapter options
- High-performance testing results
- USB data interface
Technical Specifications
| Test Range | 1640.42ft(500m)/0.621 miles(1km)/ 1.242 miles(2km)/ 2.485 miles(4km)/ 4.970 miles(8km)/ 9.940 miles(16km)/ 19.880 miles(32km)/ 39.760 miles(64km)/ 62.137 miles(100km) |
| Pulse Width | 3ns, 5ns, 10ns, 20ns, 30ns, 50ns, 80ns, 160ns, 320ns, 500ns, 800ns, 1us, 2us, 3us, 5us, 8us, 10us, 20us |
| Ranging Accuracy | ± (1m + Sample interval + 0.005% × Test distance) |
| Linearity | ≤0.05dB/dB |
| Sample Points | 16k to 128k |
| Sample Resolution | 0.164ft (0.05m) to 26.247ft (8m) |
| Loss Resolution | 0.001dB |
| Loss Threshold | 0.20dB |
| Range Resolution | 0.003281 feet (0.001m) |
| Refractive Index | 1.00000 to 2.00000 |
| Reflection Accuracy | ±3dB |
| File Format | SOR Standard File Format |
| Loss Analysis | 4-point method / 5-point method |
| Laser Safety Level | Class II |
| Connector | FC/UPC (Interchangeable SC, ST) Or SC/APC |
| Refresh Rate | 3Hz (Typ.) |
| Multitasking | Supports arrangement |
