Overview

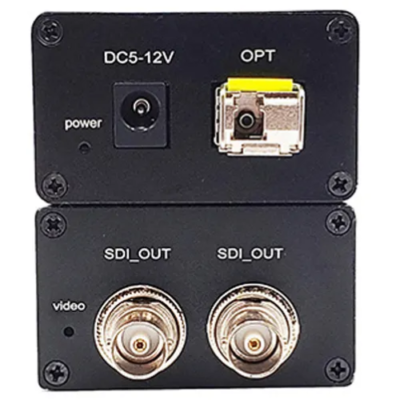

The Inventory Master fiber transceiver converter with automatic identification adopts advanced uncompressed digital high definition video and high speed digital optical fiber transmission technology, It is used to transmit 11.88 gmbps 12g sdi, 5940mbps 6g sdi Ultra HD video signal, and downward compatible with 143m, 177m, 270m, 360m, 540M, 1483.5m, 1485m, 2970mbps HD or sd sdi HD video signal, and fully compatible with DVB-ASI digital code stream signal. Top support 4K @ 60 HZ It supports SDI transceiver ring out, SFP pluggable module and LC optical port.
Features
- Automatically adapt to SDI 143m, 177m, 270m, 360m, 540M, 1483.5m, 1485m, 2970m, 5940m and 11.88gbps rates
- Full digital, uncompressed HD optical fiber transmission
- Built in automatic balance, clear and stable picture
- Automatic identification and configuration of various display modes
- Built in ESD protection circuit can effectively prevent static electricity loss
- The video interface provides three-level lightning protection function, which can pass the test of ITU-T K.21 (10/700 μS), common mode: 6KV, impedance (40 Ω)
- External AC220/5V power adapter or external DC 48V/5V power adapter
Technical Specifications
| Functional Description | 1 Channel 12 G SDI in the Optical Transmission |
| Port Description | One Fiber Interface ,1 x 12 G SDI Interface |
| Power | 5V |
| Respond Time | 0.5 ms |
| Fiber | Single mode Fiber 9 or 125um |
| Optical Interface | LC |
| Wave Length | 1470 nm, 1490 nm, 1510 nm, 1530 nm, 1550 nm, 1570 nm, 1590 nm, 1610 nm |
| Video Input/Output Voltage | Typical: 1 Vpp, Min 0.5 Vpp, Max 1.5 Vpp |
| Video Bits Rate | Max 11.8 Gb per s |
| Interface | 75Ω (unbalanced) |
| Size | 3.54 in × 2.16 in × 1.25 in (9.0 cm × 5.5 cm × 3.2 cm) |
| Weight | 22.92 oz (650 g) |
