Features
- Color TFT LED display
- Multi-wavelength synchronization
- Built-in optical power meter
- Stable light source
Technical Specifications
| Item | OTDR |
| Optical Fiber Type | Single-mode |
| Central Wavelengths | 1310/1550nm |
| Maximum Dynamic Range | 32/30dB |

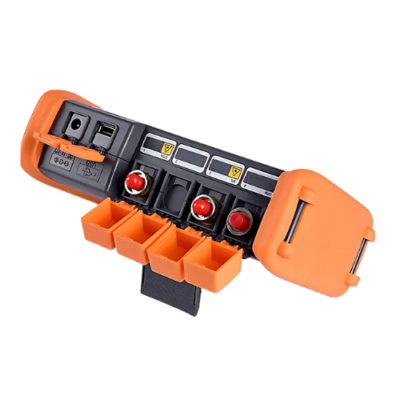

| Optical Interface | FC/PC (Replaceable SC, ST) |
| Ranging Accuracy | ± (2.5 ft (0.75m) + Sampling interval + 0.005% × Test distance) |
| Attenuation Measurement | ±0.05 dB/dB |
| Reflection Measurement | ±3dB |
| Data Storage | ≥2000 |
| Communication Interface | USB, mini-USB, 10M/100M Ethernet |
| VFL Output Power | ≥5mW |
| LS Output | ≥-5dBm |
| OPM | +26dBm to -50dBm (+6dBm to -70dBm Replaceable) |
| Power Supply Mode | AC/DC Adapter: AC: 100 to 240V, 50/60Hz, 0.6A; Lithium battery: 7.4V 6700mAh |
| Event Dead Zone | 3.3 ft (1m) |
| Attenuation Dead Zone | 19.7 ft (6m) |
| Relative Humidity | 0 to 95% Non condensation |
| Operating Temperature | 23 °F to 122 °F (-5 °C to 50 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Dimension | 8.9 in x 6.3 in x 2.8 in (22.7 cm x 16 cm x 7 cm) |
| Weight | 2.4 lbs (1.1kg) |
