Overview

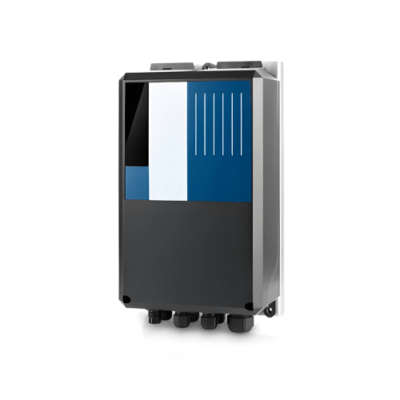

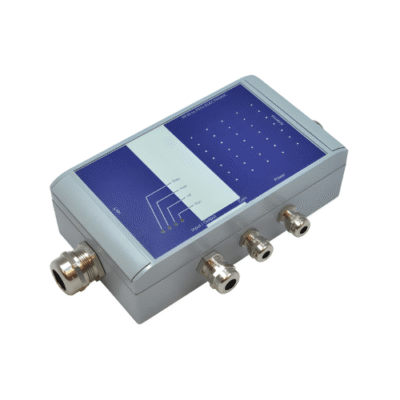

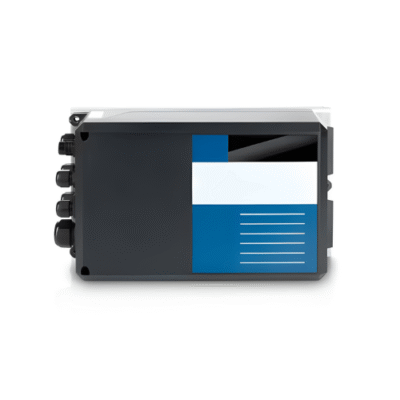

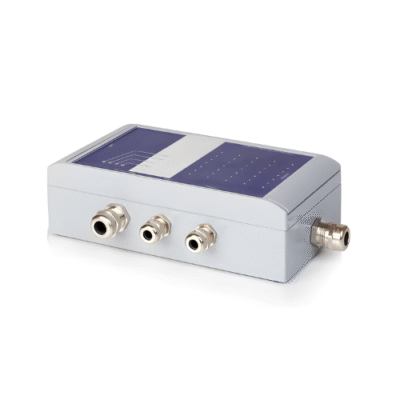

The Inventory Master HF RFID Reader Module for Shipment Tracking identifies transponders according to ISO 15693 and HF Ge2 with an operating frequency of 13.56 MHz. The combination of powerful devices and low-price leads to an optimal cost-performance ratio. It is suitable to be used in fields of applications like retail, industry, and logistics with a small and medium number of tags inside the reading area. It is designed for applications where the output power of mid-range reader is insufficient. Examples are conveyor belts, sorting systems, and production lines.
Technical Specifications
| Operating Frequency | 13.56 MHz |
| Transmitting Power | 1 W to 5 W |
| Power Supply | 24 V DC ± 15% |
| Power Consumption | Max. 16 VA |
| Outputs | 1 Relay (24 V, 1 A) |
| Interfaces | Ethernet (TCP or IP), USB, RS 232 |
| Operation Temperature | -4 oF to 131 oF (-20 oC to 55 oC) |
| Storage Temperature | -13 oF to 185 oF (-25 oC to 85 oC) |
| Relative Air Humidity | 5% RH to 80% RH (non-condensing) |
| Dimensions | 10.04 in x 5.32 in x 2.56 in (255 mm x 135 mm x 65 mm) |
| Weight | 38.8 oz (1100 g) |
