13.56 MHz RFID Reader with Built-In Antenna, DC 3.3 V, Read Range Up to 2.36 in (60 mm), -10°C to 50°C Operating Temperature.

SKU: TIMHMOD–134 Category:

Overview

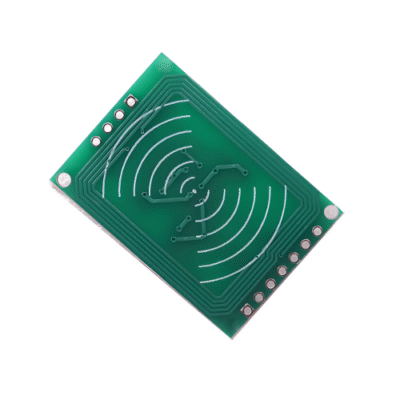

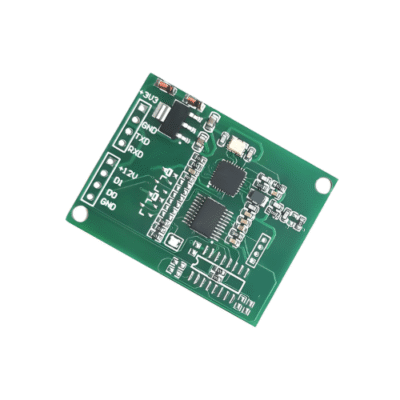

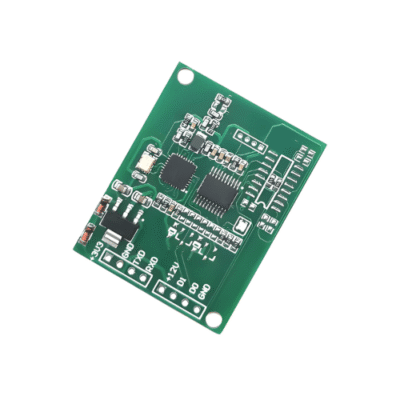

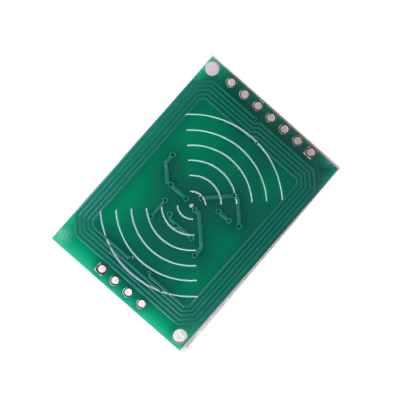

The Inventory Master Antenna Built-In HF RFID Reader Module is a Mifare ISO 14443 A, read or write device and with standard antenna which typical operating distance is 50 mm to 60 mm. Including Mifare Smart Card, Mifare S 50, and S 70. Its versatility allows a flexible and efficient application in different configurations and system devices.



Technical Specifications

Frequency13.56 MHz
Baud Rate9600 bps
Standard, ProtocolISO or IEC 14443 A
Supporting CardMifare S 50, S 70
InterfaceWiegand, RS 232, TTL
Power SupplyDC 3.3 V (± 5%)
Current< 30 mA
Read Distance1.18 in to 2.36 in (30 mm to 60 mm)
Operating Temperature14 oF to 122 oF (-10 oC to 50 oC)
Storage Temperature-4 oF to 140 oF (-20 oC to 60 oC)
AntennaBuilt-in
Dimension1.61 in x 1.26 in x 0.10 in (41 mm x 32 mm x 2.5 mm)
