Overview
Apex is a trusted antenna design partner in Taiwan, specializing in concept-to-completion solutions for a wide range of applications, including industrial, cellular, 5G, automotive, GNSS/GPS, scientific, medical, and more. We leverage our integration expertise and capabilities to design and manufacture custom antenna solutions for a range of wireless and IoT applications, focusing on small multiband and complementary antennas and employing MID/LDS, flex, stamped, and ceramic technologies, among others. We offer a wide range of frequency bands in a variety of package sizes. All of our internal antennas are Halogen-Free and RoHS-compliant. Contact us to request any custom parameters or physical modifications that you may desire and we will design to your specific needs.

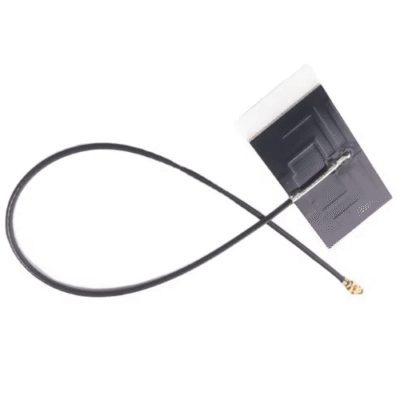

Technical Specifications
| Frequency | 2400 MHz to 2500 MHz or 5150 MHz to 5850 MHz |
| VSWR | < 2.0 types |
| Gain | 5 dBi |
| Efficiency | 70 % |
| Polarization | Vertical |
| Impedance | 50 ohms |
| Radiation | Omni-directional |
| Connector | IPEX plug or others |
| Material | PCB |
| Operating Temperature | 68 °F to 149 °F (-20 ℃ to + 65 ℃ |
| Dimension | 1.29 in x 0.78 in x 0.03 in (35 mm x 20 mm x 0.8T mm) |
| Weight | 0.07 oz (2.2 g) |
| Single Package Size | 1.37 in x 0.78 in x 0.39 in (3.5 cm X 2 cm X 1 cm) |
| Single Gross Weight | 0.10 oz (0.003 kg) |
