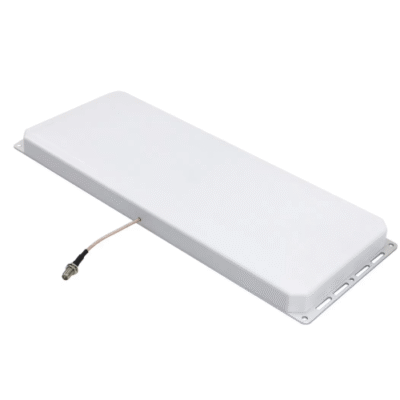

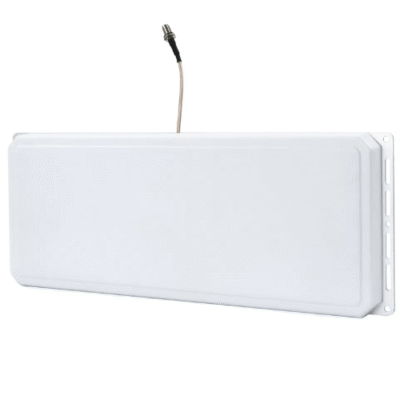

High-Gain Anti-Collision Circular Polarized RFID Antenna for Race Timing – The Inventory Master

Enhance race timing accuracy with this 902-928 MHz RFID antenna, featuring 8 dBi gain, circular polarization, and rugged design for reliable performance.

SKU: TIMANT-106 Category:

Features

  • It is large in size
  • It has a back cover on the bottom
  • It can be built into an all-in-one machine with built-in modules
  • Long reading and writing distance
  • It has high stability.



Technical Specifications

Frequency Range902 to 928
Gain8 dBi
Dimension13.22 in x 5.11 in x 0.78 in (336 mm x130 mm x 20 mm)
VSWR≤ 1.5
ProtocolISO or IEC 18000 6B 6C or EPC C1Gen2
Beam WidthHor 45 ± 1 Ver 75 ± 1
Impedance50
PolarizationCircular Polarization
MAX Power50
ConnectorInternal Lead RG316 or 3.93 (10 cm) or Connector or Customized
Antenna Weight17.6 oz (0.59 KG)
Reflector MaterialFR4 Copper Clad Laminate
Radome MaterialABS
Radome ColorWhite
Operating Temperature104 °F to 131 °F (-40 ℃ to 55 ℃)
Single Package Size20.47 in x 6.29 in x 3.14 in(52 cm X 16 cm X 8 cm)
Single Gross Weight3.30 lb (1.500 kg)
