Features

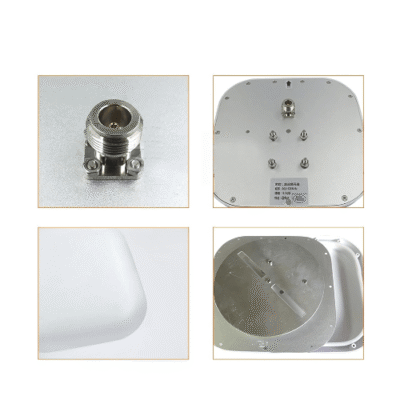

- RFID Panel Antenna with 7.5″ square perfectly works at 915MHz 902-928
- Designed In a Compact, Versatile and Light Weight Package
- Panel Antenna for LoRa, Helium, 900 MHz Band ISM And Data
- Provides a Peak Gain Of 8.5dBi
- With a Very Usable 65-degree Half Power Beam Width
- N-type female connector at rear
- Rugged Ultra heavy-duty construction
- IP67 Rated for indoor and outdoor
Technical Specifications
| Frequency | 902 MHz to 928 MHz |
| VSWR | ≤ 1.5 |
| Impedance | 50 Ω |
| Gain | 8.5 dbi |
| Radiation Type | Directional |
| Polarization | Circular |
| Axial Ratio | ≤ 2 |
| Horizontal Beamwidth | 65 Deg (± 2 Deg) |
| Vertical Beamwidth | 70 Deg (± 2 Deg) |
| Power | 50 W |
| Connector | N female |
| Housing Material | ABS |
| Dimensions | 7.48 in x 7.48 in x 1.06 in (190 mm x 190 mm x 27 mm) |
| Gross Weight | 15.67 oz (450 g) |
