Overview

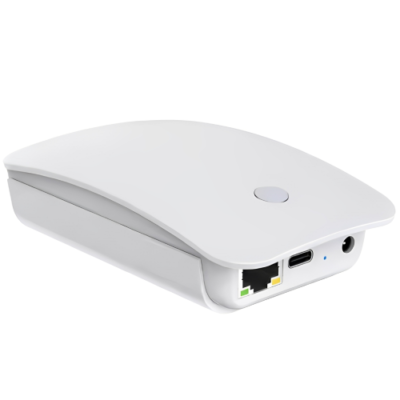

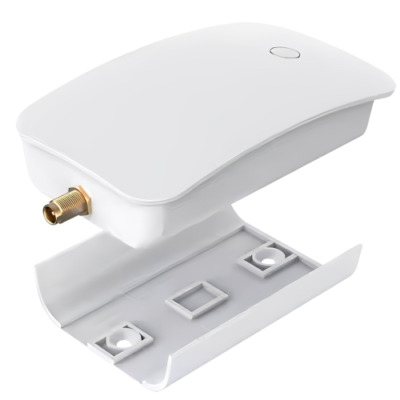

The Inventory Master indoor multi-channel LoRaWAN gateway with Wi-Fi and ethernet is a high cost-effective indoor standard LoRaWAN gateway, which can be used independently or as a blind filling gateway. With simple configuration, it allows you to bridge LoRa wireless networks to IP networks and different network servers via Wi-Fi or Ethernet. This gateway has a sleek, contemporary design. It is wall-mounted, can be easily placed anywhere indoor to ensure that it provides adequate signal coverage.
Features
- MT7628 MCU, SX1303 and SX1250
- Wi-Fi and ethernet supported
- Support LoRaWAN
Technical Specifications
| MCU | MTK7628 |
| LoRa Chipset | SX1303 and SX1250 |
| Multi-Channel | Eight (8) Uplink, One (1) Downlink |
| Frequency | 470 MHz to 510 MHz or 863 MHz to 870 MHz or 902 MHz to 923 MHz |
| Wi-Fi | IEEE 802.11 b or g or n 2.4GHz |
| LoRa RX Sensitivity | – 125 dBm at 125 KHz or SF7 – 139 dBm at 125 KHz or SF12 |
| Ethernet | 10 M or 100 M |
| Max. TX Power | + 27 ± 2 dBm |
| Supply Voltage | 5 V |
| Operating Humidity | 10 % RH to 90 % RH, No-Condensing |
| Operating Temperature | -4 °F to 158 °F (- 20 °C to 70 °C) |
| Dimensions | 4.57 in x 2.56 in x 1.18 in (116 mm x 65 mm x 30 mm) |
