Overview

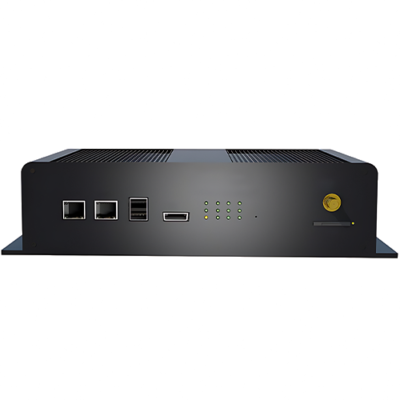

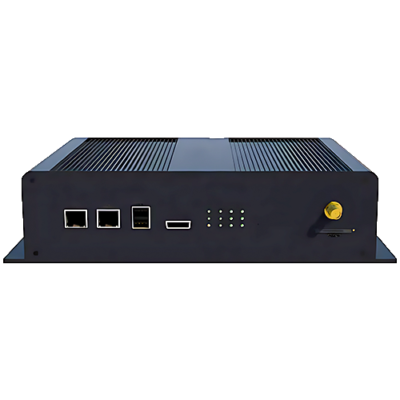

The Inventory Master zero-code edge computing gateway is edge computing gateway. With its rich hardware interfaces, drag-and-drop programming method, Zero Code design concept, convenient remote management and other characteristics, it can quickly, flexibly, accurately and efficiently respond to various IoT industry needs. It abstracts complex hardware interfaces, different industrial network protocols, etc. into Nodesone by one. Users can use these Nodes flexibly to replace the traditional complex and inefficient coding process by dragging and connecting. Really let customers focus on business logic and quickly create their own gateway equipment. The mission is to continuously develop new Nodes to serve industry customers to adapt to the fragmentation of IoT industry needs.
Technical Specifications
| CPU | ARM Cortex-A72 4 x 1.5 G | ||
| Storage | 1 G + 8 G | ||
| Real Time Clock | Support | ||
| WAN | 1x 1000 or M Support DHCP Client | ||
| LAN | 1 x 100 or M Support DHCP Server | ||
| USB | 2 x USB | ||
| Rated Voltage | DC 12 V DC 9 V to 28 V (Working Range) | ||
| Hardware | DO | 4 x Relay output (10 A or 250 VAC 30 VDC) | |
| DI | 4 x Relay input (Wet & Dry nodes) | ||
| AO | 4 x Analog output (4 mA to 20 mA, 12-bit precision) | ||
| AI | 4 x analog input (4 mA to 20mA, 12bit precision) | ||
| LED | Support DO or DI status indication (customizable) | ||
| Software Parameters | Ops | Support remote configuration or upgrade or management | |
| VPN | Support intranet penetration support PLC remote upload and download (network port) | ||
| Edge Computing | Support drag and drop programming Support zero-code development Support JavaScript development | ||
| Data Storage | Support TSDB (Time Series Databases) | ||
| Industrial Agreement | Support multiple industrial protocols (Developing) | ||
| Network Protocol | MQTT or HTTP or TCP or UDP or WEBSOCKET | ||
