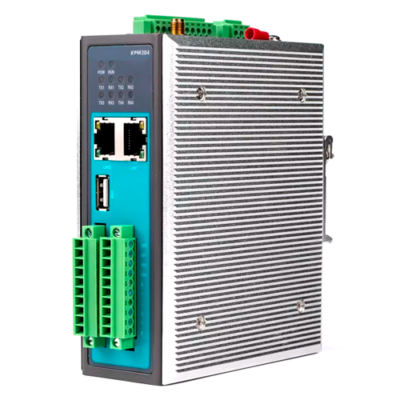

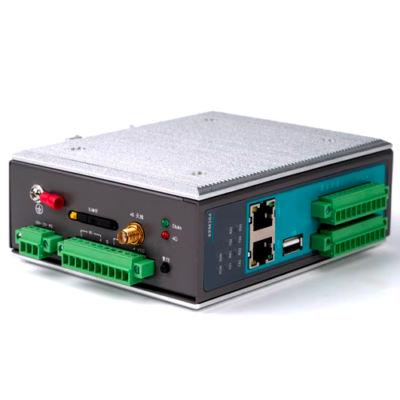

Industrial Gateway Protocol Converter Data Management Solution – The Inventory Master

Features

• Industrial grade ARM 9 processor, 300MHz frequency.
• 128MB DDR3 SDRAM, 128M flash.
• Support 2 wire high-speed 10 or 100 M independent network interface.
• Support 2 or 4 wire RS 485 serial communication interface.
• Built-in real-time clock (RTC), temperature sensor, and independent hardware encryption circuit to protect user IP.
• Built-rich communication protocol library to support the electricity IEC60870-101 to 103 to 104 protocol, ProfiNET, EtherNet, BACnet, SNPx, Modbus TCP to IP, MQTT, OPC-IE, and other communication protocols.
• Built-in WEB server, support for remote development, configuration, commissioning, and maintenance.
• Achieve communication management, data gateway, data forwarding, protocol conversion, pre-processing, and other functions.
• CAN interface bidirectional optical isolation CAN2.0 interface standard.
• Support all the way debug serial port, as well as WIFI wireless LAN to GPRS to 3G to 4G remote communications and other extensions.
• Expandable 4 G to 128 G TF memory card.
• Rugged metal shell and internal circuit “three defenses” treatment, especially for the harsh environment on site.

Technical Specifications
