Overview

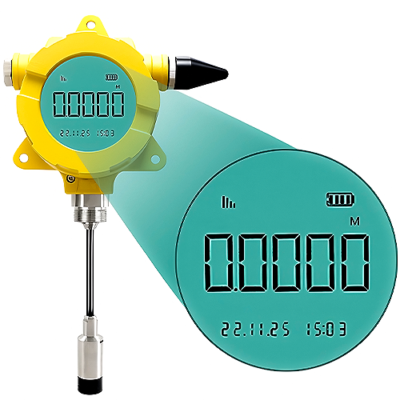

The Inventory Master wireless level sensor with LCD- The wireless level sensor uses a large-capacity lithium battery to provide a stable and reliable power supply for the product, enabling it to operate safely for more than 6 years (uploaded once an hour). The self-developed low-power system can provide users with on-site data through the LCD screen, upload data through the wireless module, and even graft the data to the user’s cloud platform. The powerful control algorithm enables the instrument to have signal breaks, transmission, automatic switching in working mode, pressure fluctuation real-time alarm, one-click wake-up, and other practical functions.
Technical Specifications
| Customized Support | OEM, ODM |
| Level Range | 0 m to 50 m |
| Configuration Method | Local USB or remote configuration |
| Working Power | 3.6 V 19 Ah (can be replaced by yourself) |
| Battery Life | 6 years (send data every hour) |
| Display | 2.4 in (6.1 cm) large size LCD screen |
| Network Format | NB-IOT or GPRS or 4G |
| SIM Card | Built-in SIM card |
| Wake-Up Mode | Buttons Timing USB |
| Accuracy | 0.5% |
| Antenna | External waterproof antenna |
| Sampling Interval | 1 time or min |
| Waterproof Level | Normal IP66/explosion-proof type IP68 |
| Installation | Vertical and horizontal installation |
| Temperature Influence | 0.015 %F.S or ℃ |
| Weight | Normal 1.21 pounds (0.55 kg) or explosion-proof type 3.31 pounds (1.5 kg) |
