Overview

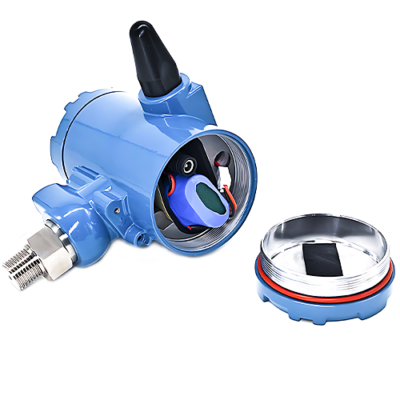

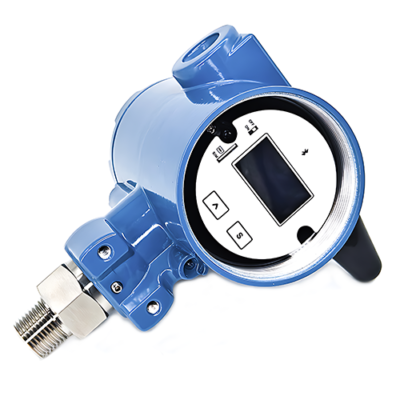

The Inventory Master intelligent wireless pressure & level transmitter- intelligent wireless transmitters are industrial pressure instruments that integrates the battery-powered, ultra-low power consumption, wireless communication, and pressure or level or temperature or differential pressure monitoring. Based on the extensive coverage of the NB-IoT or 4G public network, these products enable online monitoring of sites over a wide area. Combined with the application of MicroSensor web data platform, remote configuration of sampling interval, transmission interval, alarm threshold can be achieved. The instrument design meets the protection rating of IP65, can be used outdoors, supports simple and fast installation. Featuring automatic data uploading after starting up, and data Screen Instruction Average working current <30mA @ 3.6V DC view on sites via PC or cellphone, it is quite suitable for monitoring in the environment is not available with power supply.
Technical Specifications
| Customized Support | OEM ODM OBM |
| Range | 0 kPa to 20 kPa … 70 MPa |
| Power Supply | 3.6 V |
| Network Mode | NB-IoT or 4G or LoRaWAN |
| Protection Level | IP 65 |
| Accuracy | 0.5 % FS |
| Material | Stainless steel case |
| Display | LCD digital |
| Ex-Proof | Exd IIC T4 Gb |
| Measuring Range | 0 kPa to 20 kPa…70 MPa |
| Diaphragm | Stainless steel 316L |
| Long Term Stability | ±0.5 % FS/Year |
| Output Signal | LCD on-site display |
| Protection Level | IP65 |
| Operating Temperature | -22 °F to 167 °F (-30℃ to 75℃) |
