Overview

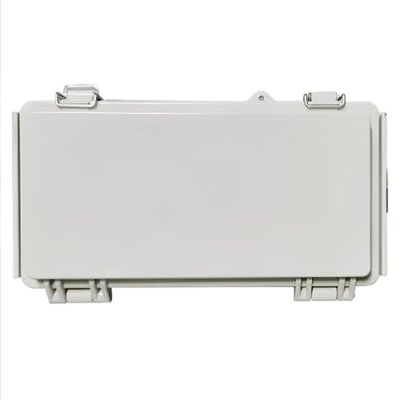

The Inventory Master long-range industrial IoT gateway with GPS is a new waterproof long-range gateway. Industrial grade components, high temperature resistant, can be operated and maintained remotely. Waterproof and shockproof, specially set up for harsh industrial environments, supporting BLE5.0 and built-in PA, the distance can reach 1500 m (4921 ft), greatly reducing the deployment requirements of the gateway, lowering the difficulty of deploying services and reducing enterprise costs.
Features
- Max 1500 m coverage
- Support iBeacon or Eddystone or Kensor and other BLE device
- Support HTTP or HTTPS, MQTT or TLS MQTT
- Support Wi-Fi or Ethernet or Cellular
- Hardware level WatchDog, ensure 24-hours full time data upload
- Optional 4G LTE module & GPS module
- Web portal for configuration
- CE or FCC certified
- Waterproof IP67
Technical Specifications
| Protocol | MQTT or MQTT over SSL or TLS HTTP or HTTPS |
| Transmitting Way | Wifi, ETH RJ45, Wifi, LTE |
| Power Supply | DC 5V or POE |
| Chipset | Nordic nRF52xxx |
| Waterproof | IP67 |
| Material | Industry use plastic |
| Scanning Ability | > 260 beacons per s |
| Wireless Distance | BLE4.0 or BLE4.1 or BLE4.2 or BLE5.0 up to 1500 m |
| Working Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Size | 8.66 in x 4.33 in x 2.95 in (22.0 cm x 11.0 cm x 7.5 cm) |
| Weight | 12.35 oz (350 g) |
