Overview

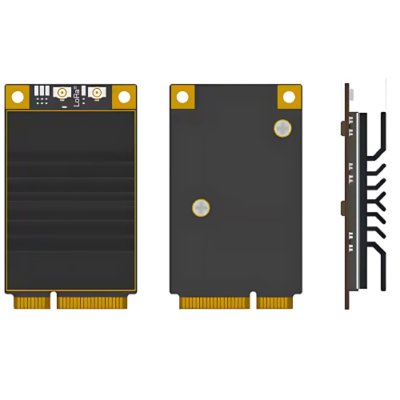

The Inventory Master LoRaWAN Gateway Module with GPS Tracking Support is a LoRa gateway module with industrial standard mini pCI express form factor based on SX1303 chipset. This mPCIe module can be used in any embedded platform offering a free mpCIe slot with SPI connectivity and capable of providing enough power for the module, enables low-power wide area communication capabilities to your new gateway design or existing industrial routers or computer.
Features
- Multichannel
- SPI Interface
- Compact min-PCI express
- Environmentally friendly RoHS compliant
Technical Specifications
| Multi-Channel | Eight uplink, one down link |
| Host Interface | SPI |
| Frequency | 863 to 870 MHz, 902 to 928 MHz (Optional) |
| Receiving Senitivity | -139 dBm |
| Tx Power | 27 dBm |
| Supply Voltage | 3.3 V |
| Power Consumption | Tx (Max) < 415 mA, Rx < 40 mA, standby 7.5 mA |
| Operating Humidity | 10% to 90%, no-condensing |
| LoRa Chipset | SX1303 |
| Operating Temperature | -40 °F to 185 °F (-40 ℃ to 85 ℃) |
| Dimension (Size) | 2 in x 1.18 in x 0.41 in (50.95 mm x 30 mm x 10.5 mm) |
