Overview

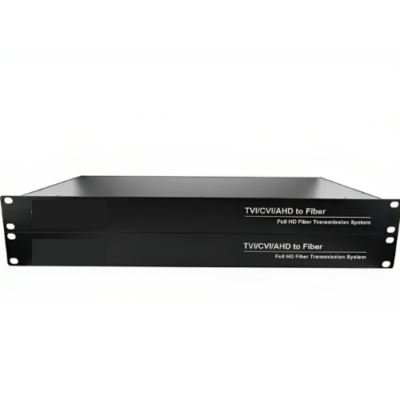

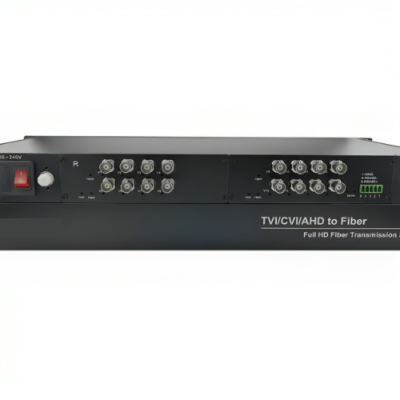

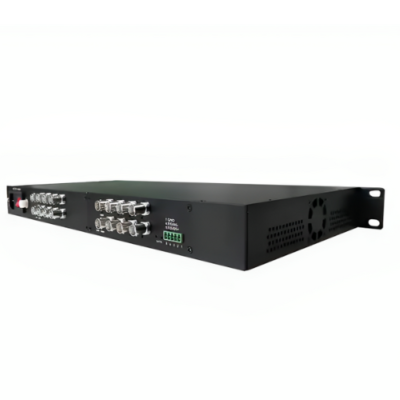

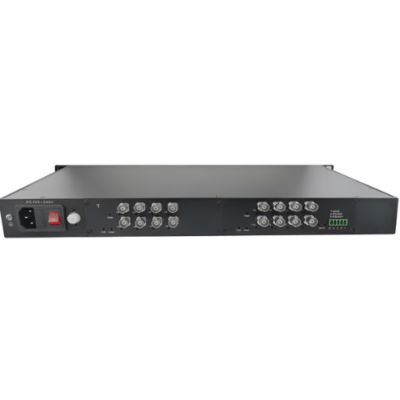

The Inventory Master CVI Fiber Converter adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the HD video composite signals to optical signals to achieve long distance as far as 49.70 mi (80 Km) transmission through fibers.
Features
• Identify TVI, CVI, AHD, CVBS formats automatically in videos
• Transmit 16 channels of video and control data simultaneously
• Advanced lightning protection with 3 kv lightning protection support
• Single-fibre transmission, optional long-distance transmission up to 49.7 mi (80 km)
• Support 1280 P x 720 P or 30 Hz, 1920 P x 1080 P resolution
• Uncompressed real-time transmission for optimal video quality
• Industrial-grade design with SMT process for reliability
• Desktop or centralized card rack installation for simplicity
Technical Specifications
| Wavelength | 1310 nm or 1470 nm to 1610 nm |
| Fiber type | Single mode, Single fibre (default) |
| Distance | 0 mi to 49.70 mi (0 km to 80 km) |
| Fiber Interface | FC (default), ST or SC (optional) |
| Video Interface Number | 16 |
| Physical Interface | BNC |
| Video input and output impedance | 75 Ω (unbalanced) |
| Input level | > 500 mVp to p |
| Output level | 1 Vp to p |
| Bandwidth | 30 MHz (720 P), 60MHz (1080 P) |
| Digit bit width | 8 bits |
| Support camera pixels | 3-megapixel, 4 megapixels |
| Video pixel | 1280 (H) × 720 (V), 1920 (H) × 1080 (V) |
| Signal to noise ratio | >60 dB (weighted) (8 bit) |
| Physical Interface | The industry standard connecting terminal |
| Interface Signal | RS 485 |
| Baud rate | 1200 bit/s to 9600 bit/s |
| Input Power Requirements | DC 5 V |
| Power Adapter | AC 100 V to 240 V |
| Operating temperature | -4 ⁰F to 167 ⁰F (-20 ⁰C to 75 ⁰C) |
| Storage temperature | -40 ⁰F to 185 ⁰F (-40 ⁰C to 85 ⁰C) |
| Working humidity | 0 % to 95 % (non-condensing) |
| MTBF | >100,000 hr |
| Dimensions | 19 in x 8.66 in x 1.73 in (48.3 cm × 22 cm × 4.4 cm) |
| Packing | 20.6 in x 13.62 in x 7.12 in (52.4 cm × 34.6 cm × 18.1 cm) |
| Weight | 11.02 lb (5 kg) |
