Overview

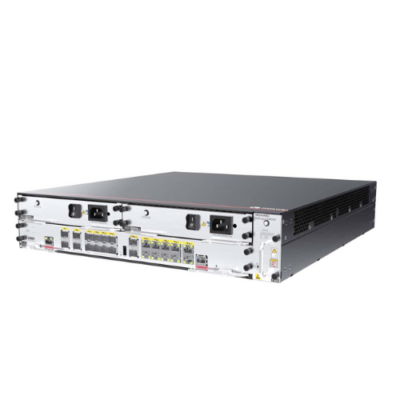

The Inventory Master enterprise WiFi network uses multi-core processors and a non-blocking switching structure, helping to deliver three times the industry average performance. The Net Engine AR600 also integrates functions such as SD-WAN, cloud management, routing, switching, VPN, WLAN, and security, ensuring diversified and cloud-based services are fully supported.
Technical Specifications
| Processor | 16-Core |
| With Modem Function | Forwarding Performance (LAN – > WAN + WAN – > LAN, NAT + ACL + QoS, IMIX) |
| IPsec performance (IMIX) | SRU-400H: 6 Gbps , SRU-600H: 7.5 Gbps |
| Fixed WAN ports | SRU-400H: WAN: 14 x10GE SFP+(compatible with GE SFP) +10 x GE RJ45 (All WAN ports can be configured as LAN) , SRU-600H: WAN: 14 x 10GE SFP+(compatible with GE SFP) +10 x GE RJ45 (All WAN ports can be configured as LAN) |
| SIC slots | 4 |
| WSIC slots | 2 (default) or 4 (maximum) |
| XSIC slots | 2(default) or 4 (maximum) |
| USB port | 1 x USB2.0 |
| Auxiliary or console port | 1 x RJ45 console port |
| Memory | SRU-400H: 8 GB , SRU-600H: 16 GB |
| Flash memory | SRU-400H: 2 GB , SRU-600H: 4 GB |
| Hot swapping | Supported |
| Router dimensions, with mounting bracket installed (H x W x D) | 3.42 in x 18.99 in x 18.50 in (88.1 mm x 482.6 mm x 470 mm) |
| Rack | IEC |
| Occupied rack space | 2U |
| Rated input voltage range (AC) | 100 V to 240 V |
| Rated input frequency (AC) | 50 Hz or 60 Hz |
| Maximum input voltage range (AC) | 90 V to 264 V |
| Maximum input current (AC) | 5 A |
| Maximum output power (AC) | 350 W |
| Power supply redundancy | Hot-swappable dual power supplies |
| Typical power consumption | 80 W |
| Maximum power consumption | 160 W |
| Fan module | Independent pluggable fan modules |
| Noise level | 54.2 dB |
| Airflow | Left to right |
| Operating temperature | 32 °F to 113 °F (0 ºC to 45 ºC) |
| Operating humidity | 5% to 95% (non-condensing) |
| Operating altitude | …. mi (< 5000 m) |
| Storage temperature | -40°F to 158°F (–40ºC to +70ºC) |
| Storage altitude | (< 5000 m) 3.1 mi |
