Overview

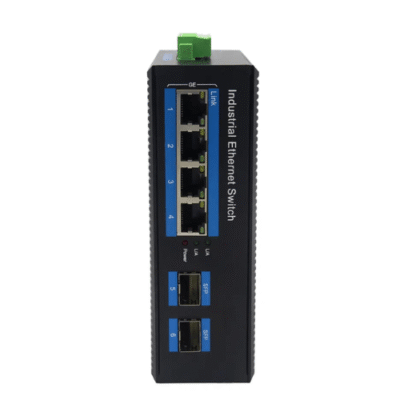

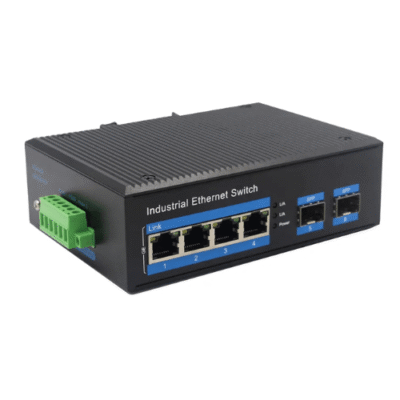

The Inventory Master Ethernet Switch has 4 Port 10 / 100 / 1000 Ethernet ports and 2 port 1000 Mbps SFP Slot for connecting with devices like computer, switch, hub, server, etc. as well as powering network cameras, industrial VoIP phone, wireless AP and other devices. It is specially designed for harsh outdoor applications with Its 3 KV network port surge protection that can adapt to harsh outdoor environments and ensure the reliability of the uninterrupted PoE system.
Features
- 4 Port 10 / 100 / 1000 Mbps RJ45, 2 port 1000 Mbps SFP Slot
- Automatic MAC address learning and aging
- Supports 10 / 100 / 1000 Mbps-Full / Half-duplex
- Super lightening protection, IP 40 protection
- Excellent heat elimination without cooling fan
- Redundant dual DC power inputs
- -40 °F to 185 °F operating temperature range
Technical Specifications
| Interface | 4 x 10 / 100 / 1000 Base-T RJ45 port + 2 x 1000 Mbps SC Fiber |
| Network Protocols | IEEE 802.3 10 BASE-T; IEEE 802.3i 10 Base-T; IEEE 802.3u;100 Base-TX/FX; IEEE 802.3ab 1000 Base-T; IEEE 802.3z 1000 Base-X; IEEE 802.3x; |
| Network Media | 10 BASE-T: Cat3,4,5 UTP (≤3937.01 in (100 m)) 100 BASE-TX: Cat5 or later UTP (≤3937.01 in (100 m)) 1000 BASE-TX: Cat6 or later UTP (≤3937.01 in (100 m)) |
| Performance Specification | Bandwidth: 20 Gbps Packet Buffer Memory: 2 M Packet Forwarding Rate: 1488000 pps / port MAC Address Table: 16 K |
| Forwarding Mode | Store-and-Forward |
| Protection | Lightning protection, IP 40 protection |
| LED Indicators | Power: PWR; Link; Link / Act |
| Power Supply | Input Power: 2 x 10 V DC to 58 V DC (Terminal Block) |
