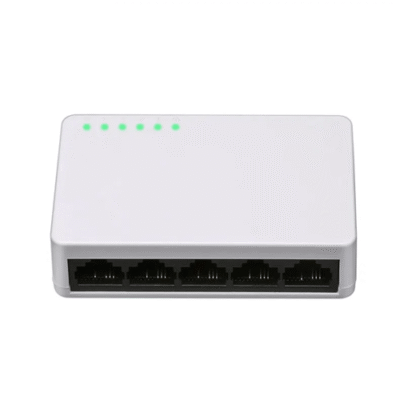

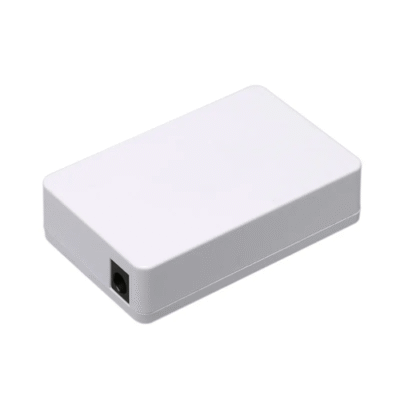

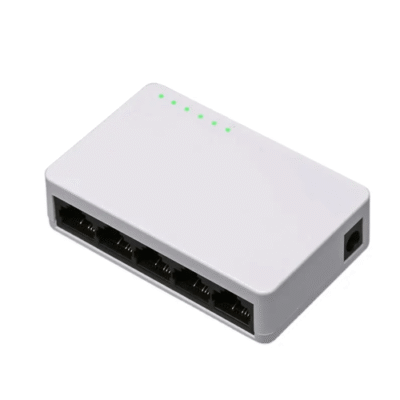

The Inventory Master Factory Direct 10 or 100Mbps 5 port Network Switches

The IP 175 G chipset powers this 5-port switch, supporting 10/100 Mbps data rates with QoS and SNMP for efficient network management.

SKU: TIMESR-220 Category:

Technical Specifications

FunctionQoS, SNMP
ChipsetIP 175 G
Port Number5 port 10 M / 100 M Auto MDI-MDIX RJ 45
StandardIEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 az
Network Media10 Base-T, cat 3 or above UTP, 10 Base-Tx, cat 5 UTP
Data Rate10 M / 100 M
Forwarding Rate10 Mbps at 14,880 pps ,100 Mbps at 148,800 pps
LED Indicator10 Mbps / 100 Mbps (Link / Act), Power
Power InputDC 5 V / 500 mA
Power ConsumptionMax 1.5 W
Dimension3.19 in x 2.01 in x 0.83 in (81 mm x 51 mm x 21 mm)
