Overview

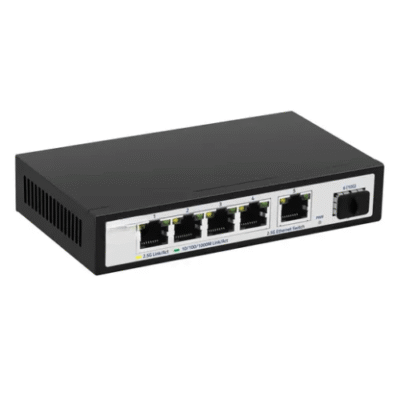

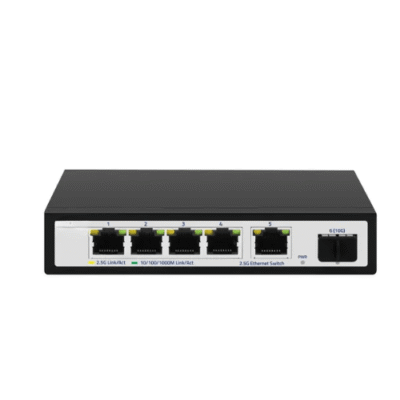

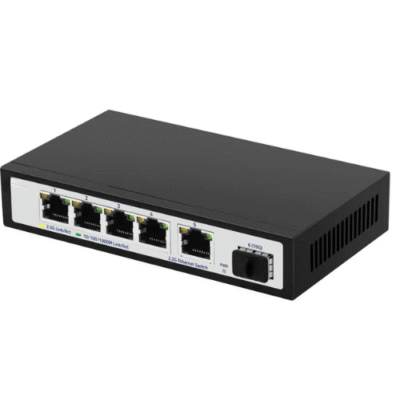

The Inventory Master high performance 2.5 G network switch adopts the high quality and high-speed network chip solution. The product completely solves the small switching through the fanless silent design Machine deployment in the office environment loud noise problem. The switch has five 2.5 G RJ45 ports and one 10 G SFP+ optical port for 10 / 100 / 1000 M / 2.5 G ethernet network provides seamless connection, easy management and maintenance, the product can be widely used in security network video surveillance, hotels, campuses, small and medium-sized enterprises network engineering and other occasions.
Features
- Powerful Connectivity
- High Bandwidth
- Versatile Network Protocols
- Durable and Reliable
- Adaptable Working Environment
- Lightweight and Compact
- Comprehensive Indicators
Technical Specifications
| Power | DC 2.1 |
| Ethernet | 5 x 2.5 G RJ 45 Ports, 1 x 10 G SFP+ port |
| Bandwidth | 45 Gbps |
| Pack forward rate | 33.48 Mpps |
| VLAN | 4096 |
| Mac address | 4 K |
| Jumbo Frame | 12 K bytes |
| Transfer Mode | Storage & forward |
| MTBF | 100000 hrs |
| Network Protocol | IEEE 802.3 (Ethernet)IEEE 802.3 u (Fast Ethernet) IEEE 802.3 ab (Gigabit Ethernet) IEEE 802.3 bz (5G Ethernet) IEEE 802.3 z (Gigabit Ethernet) IEEE 802.3 ae (10G Ethernet) IEEE 802.3 x (Flow control) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN 55032) Class AEMS: EN 61000 to 4 to 2 (ESD) IEN 61000 to 4 to 5 (Surge) |
| Network Medium | 10 Base-T: Cat 3, 4, 5 or above UTP / STP ≤3937.01 in (≤100 m)100 Base-TX: Cat 5 or above UTP / STP ≤3937.01 in (≤100 m) 1000 Base-TX: Cat 5 or above UTP / STP ≤3937.01 in (≤100 m) |
| SFP Medium | Multi-Mode: 50 / 125, 62.5 / 125, 100 / 140 umSingle Mode: 8 / 125, 8.7 / 125, 9 / 125, 10 / 125 um |
| Working Environment | Working Temperature: 14 °F to 122 °F (- 10 °C to 50 °C)Storage Temperature: – 40 °F to 158 °F (- 40 °C to 70 °C) Working Humidity: 10% to 90%, non-condensing Storage Temperature: 5% to 90%, non-condensing |
| Power Voltage | Adapter input voltage: 100 V AC to 240 V ACSwitch input voltage: DC 12 V 1 A |
| Indicator | PWR (power), 1 to 5 green light / yellow (Link & data) |
| PWR | On: Powered onOff: Powered off |
| Weight | Net-Weight: 0.73 lb (330 g)Gross-Weight: 1.01 lb (460 g) |
| Size | 5.51 in x 3.66 in x 0.79 in (140 mm x 93 mm x 20 mm) |
