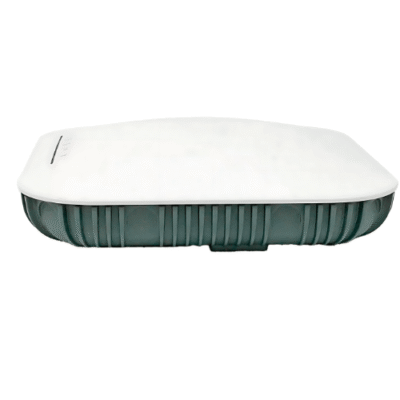

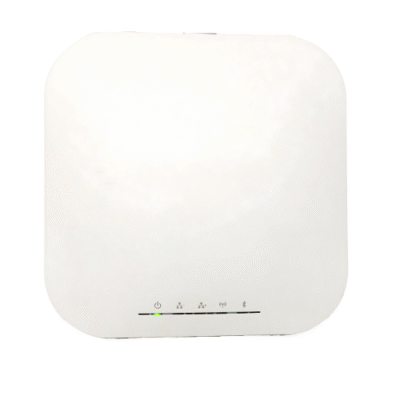

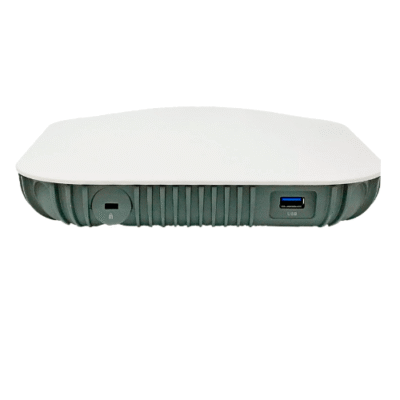

Overview
The Inventory Master Indoor Access Point are managed centrally by the integrated WLAN controller of any FortiGate security appliance or through the Forti LAN Cloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments. Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Singlepane-of-glass management console and protects your network from the latest security threats.
Technical Specifications
| Number Of Radios | 3 + 1 BLE |
| Number Of Antennas | 42.4 GHz band WIFI + 85GHz band WIFI + I Dual band Scanning + 12.4 GHz band BLE |
| Antenna Type And Peak Gain | PIFA: 4.0 dBi for 2.4 GHz band WIFI antennas 6.0 dBi for 5.0 GHz band WiFi antennas 4.0 dBi for dual band Scanning radio antenna 4.5 dBi for 2.4 GHz band BLE antenna |
| Frequency Bands (GHz) | 2.400 to 2.4835, 5.150 to 5.250, 5.250 to 5.350, 5.470 to 5.725, 5.725 to 5.850 |
| Radio 1 Capabilities | Frequency Band: 2.4 GHz Channel width: 20 or 40 MHz Modulation: BPSK, QPSK, QAM 64 MIMO chains: 4 x 4 service |
| Radio 2 Capabilities | Frequency Band: 5.0 GHz Channel width: 20 or 40 or 80 or 80 + 80 or 160 MHz Modulation: BPSK, QPSK, QAM64, QAM 256, and QAM 1024 Mimo chains: 8 x 8 service in mode 1 or 4 x 4 + 4 x 4 service in mode 2 |
| Radio 3 Capabilities | Frequency band: 2.4 or 5.0 GHz MIMO chains: 1 x 1 frequency scanning |
| Maximum Data Rate | Radio 1: up to 1147.5 Mbps Radio 2: up to 4.804 Gbps in 8 x 8 MIMO and in 4 x 4 + 4 x 4 MIMO modes |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement at 10 dBm max TX power |
| Interfaces | 1x 100 or 1000 or 2500 or 5000 Base-T RJ 45 1 10 or 100 or 1000 Base-T RJ 45 1 Type 3.0 USB, 1 RS-232 RJ 45 Serial Port |
| Power Over Ethernet (PoE) | 2x 802.3 at or bt or 30 W Passive PoE in (Full function) 1x 802.3 at PoE in (USB 3.1 disabled) |
| Simultaneous SSIDs | Up to 24 |
| EAP Type(s) | EAP-TLS, EAP-TTLS or MSCHAPv 2, EAPv0 0r EAPMSCHAPv 2, PEAPv 1 or EAP to GTC, EAP to SIM, EAP to AKA, EA to -FAST |
| User Or Device Authentication | WPA, WPA2, and WPA3 with 802.1 x or Preshared key, WEP, Web Captive Portal, MAC blocklist, and allowlist |
| Maximum Tx Power | Radio 1: 2.4 GHz 27 dBm or 500 mW (4 chains combined) Radio 2: 5 GHz 25.5 dBm or 354 mW (4 chains combined) Radio 3: NA |
| Kensington Lock | Yes |
| IEEE Standards | 802.11 a, 802.11 b, 802.11 d, 802.11 e, 802.11 g, 802.11 h, 802.11 i,802.11 j, 802.11 k, 802.11 n, 802.11 r, 802.11 v, 802.11 ac, 802.11 ax (Wi-Fi 6), 802.1 Q, 802.1 X, 802.3 ad, 802.3 af, 802.3 at, 802.3 az, 802.3 bz |
| SSID Types Supported | Local-Bridge, Tunnel, Mesh |
| Length x Width x Height | 9.05 in x 9.05 in x 2.16 in (230 mm x 230 mm x 55 mm) |
| Weight | 2.24 lb (1.02 kg) |
| Package (Shipping) Weight | 4.1 lb (1.9 kg) |
| Power Supply | SP-FAP400-PA-XX or GPI-130 |
