Overview

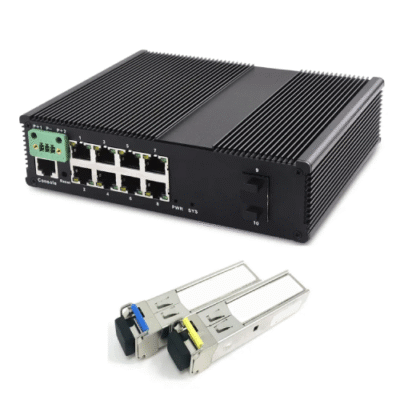

The Inventory Master Industrial Ethernet Switch is a high performance 10 port, industrial, managed gigabit Ethernet switch with eight 10/100/1000M PoE ports and two gigabit SFP ports. The eight PoE ports support IEEE802.3af/at standard. The switch supports Ethernet Ring Protection Switching (ERPS) as well as STP / RSTP / MSTP. It also supports Web-based network management, VLAN, QoS, SNMP, IGMP snooping and other network functions. LED indicators provide the connection status when using SFP option. The product is available in either DIN rail or wall-mount configurations
Features
- 8 x 10 / 100 / 1000 Base-T Ethernet ports (PoE)
- 2 x 1000 BASE-X SFP ports EPRS
- Recovery time < 30 ms with 250 connected units
- STP / RSTP / MSTP redundancy protocols and standards
- Multicast function WEB, Telnet, SSH, Console (CLI) open and close port
- Non-PoE models are available
Technical Specifications
| RJ45 port and speed | 8 x 10 / 100 / 1000 M Base-TX |
| Fiber port and speed | 2 x 1000 Base-FX SFP |
| PoE Standard | 8 x IEEE 802.3af / IEEE 802.3at PoE |
| Management | VLAN, QoS, SNMP, IGMP snooping |
| Mac address table | 8K |
| Protection grade | IP40 aluminum case |
| Packet buffer | 4 Mbits |
| Maximum packet length | up to 1532 Bytes |
| Function | POE, SNMP |
