Overview

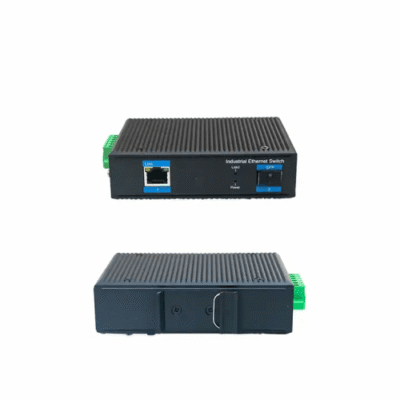

The Inventory Master industrial ethernet series are industrial-grade gigabit optical Fiber transceivers, which adopt a full-industrial-grade design and high protection level, which enhances the reliability and security of industrial networks. to meet transportation, electricity, energy source, outdoor monitoring, and other deployment requirements in harsh environments.
Features
- Redundant power supply design, power supply anti-reverse protection
- IP 40 degree of protection against dust, chips and dirt
- DIN rail installation
- Full-duplex or half-duplex mode, with auto-negotiation capability
- Power supply overvoltage alarm, power supply undervoltage alarm
- Optical port supports SC/FC/SFP multiple interface forms
- Strong compatibility, compatible with various brands in the market
Technical Specifications
| PORT | Electrical Signal Port | 1 x 10/100/1000 Base-TX |
| Optical Signal Port | 1 x 1000 Base-FX | |
| Optical Signal Port | 1 (optional) | |
| PoE port | 802.3 af, 802.3 at | |
| POE protocol | 802.3 af, 802.3 at | |

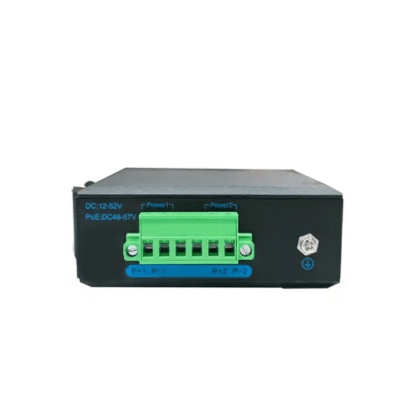

| Power interface | Phoenix terminal, Dual power supply redundancy | |
| LED indicator | PWR, electrical port, optical port (Link/ACT) | |
| Electrical Characteristics | Input voltage | DC 12 V to 52 V, DC 48 V to 57 V (POE) |
| Machine power consumption | <2 W | |
| Reverse polarity protection | support | |
| Overvoltage protection | support | |
| Layer 2 Switching Characteristics | Switch capacity | 0.03 lb (14 g) |
| Packet forwarding rate | 14.8 Mpps | |
| MAC address table | 2 K | |
| Forwarding delay | <5 us | |
| Polarity Reversal (MDX/MIDX) | Supported | |
| Package cache | 2 M | |
| Watchdog function | support | |
| port trunking | support | |
| Environmental Conditions | Working temperature | -40 °F to +176 °F (-40 ℃ to +80 ℃) |
| Storage/Transportation Temperature | -40 °F to +176 °F (-40 ℃ to +80 ℃) | |
| Relative humidity | 5% to 95% | |

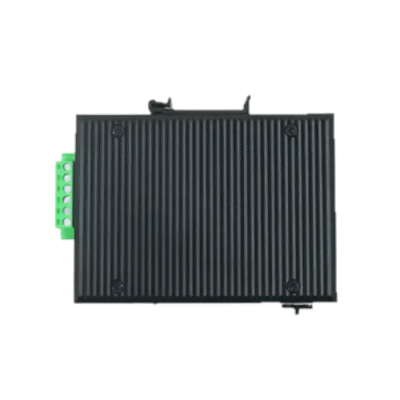

| Heat dissipation method | Fan-less design, natural heat dissipation | |
| MTBF | 30 years | |
| Protection | IP rating | IP40 |
| Surge (shock) immunity | IEC 61000-4 to 5 Level 3 | |
| Electrical fast burst immunity | IEC 61000-4 to 4 Level 3 | |
| Electrostatic Discharge Immunity | IEC 61000-4 to 2 Level 4 | |
| Free fall | 19.68 in (500 mm) | |
| Installation method | Rail installation | |
| Weight about | 0.99 lb (450 g) | |
| Dimensions | 19.68 in × 4.64 in × 3.38 in (118 mm x 86 mm x 39 mm) | |
