Overview

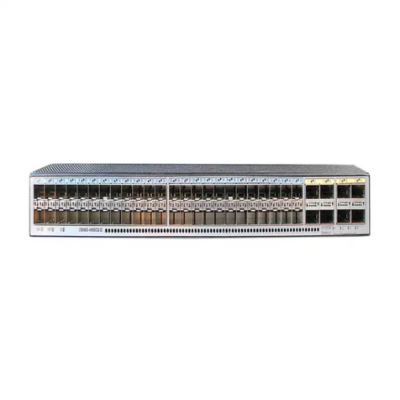

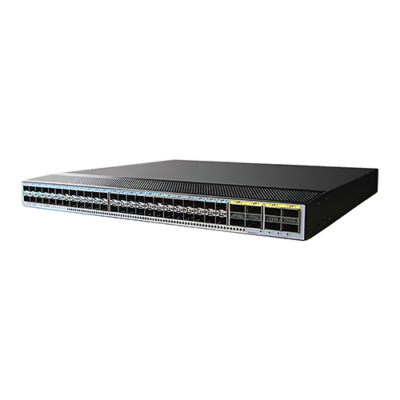

The Inventory Master industrial managed ethernet switch is a high-performance Ethernet switch developed by Huawei. It has 48 Ethernet electrical ports and eight high-speed optical ports, supporting 10 or 100 or 1000BASE-T Ethernet rates and 100G QSFP28 optical port rates. The switch uses a non-blocking switching architecture with powerful switching capacity and forwarding performance to meet the needs of high-density data centers and enterprise networks. This product supports multiple important network functions and protocols, such as VLAN, static routes, RIP, OSPF, and BGP, making network management and configuration more flexible and efficient. In addition, it provides rich security features such as MAC address binding, access control lists (ACLs), and port security to protect the network from potential security threats.
Technical Specifications
| Exchange capacity | 4.8 Tbps or 76.8 Tbps |
| Packet forwarding rate | 2,000 Mpps |
| Typical power consumption | 259 W |
| Maximum power consumption | 420 W |
| Number of ports | 48 |
| Electrical port type | 10 or 100 or 1000BASE-T |
| Backlight interface | 8 QSFP28 photoelectric ports |
| Storage | 8 Gb RAM, 16 Gb Flash |
| Switch architecture | Non-blocking switching architecture |
| Security support | MAC address binding, access control lists security, etc. |
| Transmission rate | 2,000 Mpps |
| Communication mode | Full-duplex and half-duplex |

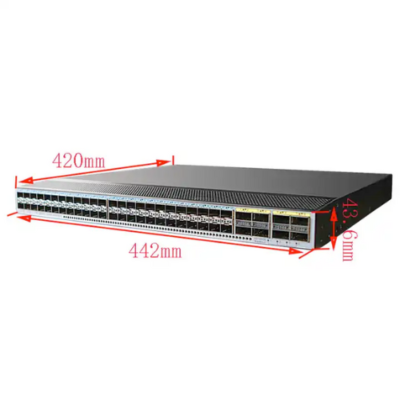

| Size | 17.40 in x 16.53 in x 1.71 in (442 mm x 420 mm x 43.6 mm) |
| Weight | 13.66 lb (6.2 kg) |
