Overview

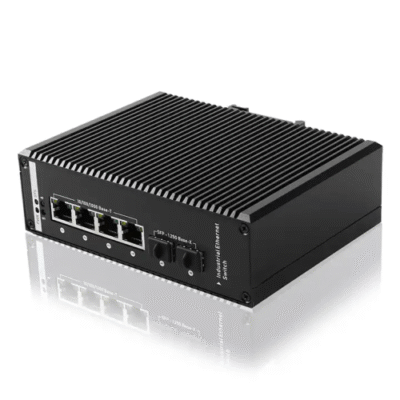

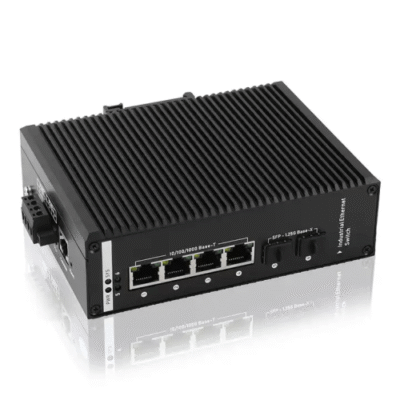

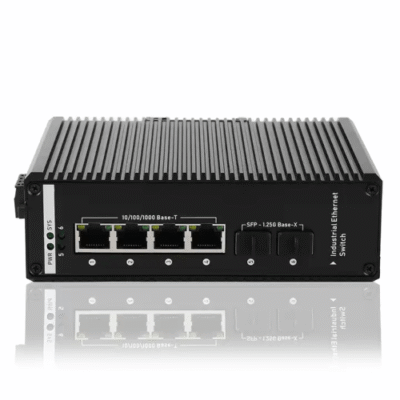

The Inventory Master industrial POE switch is a full gigabit managed industrial PoE switch independently developed by HUASIFEI. it has 4 x 10/100/1000 M PoE ports and 2 x 100/1000 SFP Fiber slot ports, port 1 to 4 can support IEEE 802.3 af/at standard PoE power supply, single port PoE power up to 30 W. As a PoE power supply device, it can automatically detect and identify the electrical equipment that meets the standard and supply power through the cable. It can supply the PoE terminal equipment, such as wireless AP, network camera, network telephone, industrial sensor and so on, to meet the demand for high density PoE power supply network environment. It is suitable for intelligent transportation, rail transportation, electric power industry, mining, metallurgy and green energy construction and so on.
Features
- Supports IEEE 802.3 I, IEEE 802.3 u, IEEE802.3 ab
- PoE power up to 30 W for each PoE port
- 4 × gigabit PoE+ ports and 2 × gigabit SFP
- Supports MAC address auto-learning and auto-aging
- Store and forward mode operate
- LED indicators for monitoring power, link/activity
- Support QoS, port mirroring, link aggregation protocol
Technical Specifications
| Chipset | RTL 8380 MI+TPS 23861 | |
| Standards | IEEE 802.3 I, IEEE 802.3u, IEEE 802.3 ab, IEEE 802.3 x, IEEE 802.3 az, IEEE 802.3 af, IEEE 802.3 at | |
| Number of Ports | 4 x 10/100/1000 Mbps ports 2 x 1000 Mbps SFP ports 1 x Console port | |
| Network Media (Cable) | 10 Base-T: UTP category 3, 4, 5 cable (maximum 3937 in (100000 mm) | |
| Transfer Method | Store-and-Forward | |
| MAC Address Table | 8 K | |
| Switching Capacity | 56 Gbps | |
| Packet Forwarding Rate | 41.67 Mpps | |
| Packet Buffer | 4.1 Mbit | |
| Jumbo Frame | 12 Kbytes | |
| PoE Ports (RJ45) | 4 x PoE ports compliant with 802.3 at/af | |
| Power Pin Assignment | ½ (+),3/6 (-) | |
| Indicators | Per Device | Power, System |
| Per Port | Link/Activity, | |
| Power Supply | 48 V to 56 V DC | |
| Power Consumption | Maximum (PoE on): 65 W | |
| Environment | Operating Temperature: -40 °F to 185 °F (-40 ℃ to 85 ℃)Storage Temperature: -40 °F to 185 °F (-40 ℃ to 85 ℃)Operating Humidity: 10% to 90% non-condensing Storage humidity: 5% to 90% non-condensing | |
| Dimensions (W×D×H) | 5.90 in × 4.33 in × 1.88 in (150 mm x 110 mm x 48 mm (Rail type Aluminium case) | |
