Overview

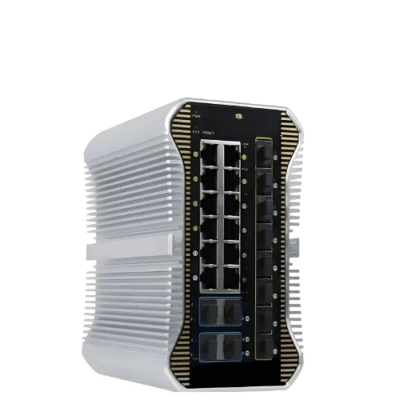

The Inventory Master conmutador industrial PoE 24 puertos L3 10 G uplink managed industrial PoE fiber switch independently developed by ONV. It has 12*10 or 100 or 1000Base-T RJ45 ports and 8 x 100 or 1000 Base-X SFP fiber slot ports and 4 x 1 or 10 G SFP+ fiber slot ports. Port 1-8 can support IEEE802.3af/at standard POE, single port POE power up to 30 W, and the maximum POE output power of the whole machine is 120 W (at-240 W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, web camera, VoIP phone, industrial sensor through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy. Industrial scenes such as construction set up a cost-effective and stable communication network. The ONV-IPS38248PFM has L3 full network management, supports IPV4 or IPV6 management, static route full line rate forwarding, security protection mechanism, ACL or QoS policy and VLAN, and is easy to manage and maintain. It has the leading ring network technology, supporting a variety of industrial redundant ring network protocol, any port can be a ring, support chain type, star type, double star type, ring type, tangent ring, intersecting ring, coupling ring, ring network 20ms self-healing. It has high reliability, security and manageability, ensures reliable transmission of key data, supports remote management, and can manage cluster management with ONV-NMS network management platform. ONV-IPS38248PFM industrial series products fully follow industrial product design and material. The casing uses aluminum alloy to enhance heat dissipation. It has excellent industrial field environment adaptability (including mechanical stability, climate and environment adaptability, electromagnetic environment adaptability, etc.), Protection level is IP40, support dual power supply, low power consumption no fan heat dissipation technology, MTBF average fault free working time can reach 35 years, 5 years warranty.
Features
- Supports non-blocking wire speed forwarding.
- Based on IEEE802.3 x and half duplex
- 8 x 10 or 100 or 1000
- IEEE 802.3 af
- PoE network management
- VLAN IEEE802.1 Q
- Priority mode based on 802.1 P
- IGMP V1 or V2 and IGMP Snooping
- ERPS or STP or RSTP or MSTP
- Static and dynamic aggregation
- Low energy consumption
- CE, FCC, RoHS, CCC.
- Web management and CLI command line
Technical Specifications
| Fixed Port | 8 x 10 or 100 or 1000 Base-T PoE ports (Data or Power) 4x 10 or 100 or 1000 Base-T uplink RJ45 ports (Data) 8 x100 or 1000 Base-X uplink SFP slot ports (Data) 4 x 1 or 1G uplink SFP+ slot ports (Data) 1 x RS232 console port(115200, N,8,1) 2 set of V +, V- redundant DC power interface (6 Pin Phoenix terminal) Power off alarm switch (FAULT) |
| Ethernet Port | Port 1 to 8 support 10 or 100 or 1000 Base-T,auto-sensing, Full or half duplex MDI or MDI-X self-adaption |
| SFP Slot Port | Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode or multi-mode, single fiber or dual fiber optical module. LC) |
| SFP Port Expansion | Turbo overclocking 2.5 G optical module and ring |
| Optical Cable or Distance | Multi mode: 850 nm or 0 to 550 M, 850 nm to 0 to 300 M (10 G); single mode: 1310 nm or 0 to 40M, 1550 nm 0 to 120 KM. |
| Network Management Type | L3 |
| Network Protocol | IEEE802.3 10 BASE-T, IEEE802.3i 10 Base-T IEEE802.3u 100 Base-TX, IEEE802.3ab 1000 Base-T IEEE802.3z 1000 Base-X IEEE802.3ae 10 G Base-LR or SR IEEE802.3 x |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 598 Gbps |
| Forwarding Rate to 64byte | 89.28 Mpps |
| MAC | 32 K |
| Buffer Memory | 32 M |
| Jumbo Frame | 21.16 lb (9.6 K) |
| PoE Port | Port 1 to Port 8 |
| Power Supply Pin | Default: 1 or 2 (+), 3 or 6 (-) |
| Max Power Per Port | 30 W; IEEE802.3 af or at |
| Total PWR or Input Voltage | 120 W (48 to 57 VDC) 240 W (50 to 57 VDC) |
| Power Consumption | Standby:<18 W;Full load:<120 W Standby:<25 W;Full load:<240 W |

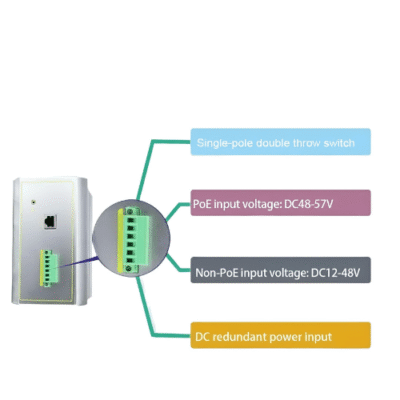

| Working Voltage | 48 to 57 VDC, 6 Pin industrial Phoenix terminal, support anti-reverse protection. |
| Power Supply | No, optional 48 V to 120 W or 48 V to 240 W industrial power supply |
| LED Indicator | Power: PWR (green), System : SYS (green), Network: Link (yellow); Fiber Port: L/A (green), PoE: PoE (green) |
| Twisted Pair Transmission | 10 BASE-T: Cat3,4,5 UTP (≤100 meter) 100 BASE-TX: Cat5 or later UTP (≤100 meter) 1000 BASE-T: Cat5e or later UTP (≤100 meter) |
| Optical Cable | Multi mode: 850 nm 0 to 550 M,single mode: 1310 nm 0 to 40 KM, 1550nm 0 to 120 KM. |
| Reset Switch | Yes, One-button factory reset |
| Operation TEMP or Humidity | -40 F to 176 F (-40 °C to 80 °C) ; 5% to 90% RH Non condensing |
| Storage TEMP / Humidity | 104 F to 185 F (40 °C to 85 °C) ;5% to 95% RH Non condensing |
| Dimension (L*W*H) | 6.54 in x 5.87 in x 3.50 in (166 mm x 149 mm x 89 mm) |
| Net /Gross Weight | 4.85 lb (2.2 kg) or 6.17 (2.8 kg) |

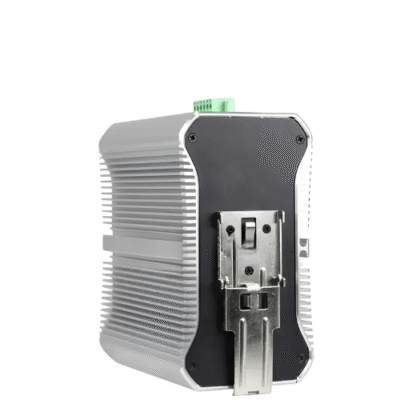

| Installation | Desktop, DIN rail |
| Lightning protection or protection level | Lightning protection: 6 KV 8 or 20 us; Protection level: IP40 IEC61000-4-2(ESD):±8 kV contact discharge,±15 kV air discharge IEC61000-4-3(RS):10 V or m (80 to 1000 MHz) IEC61000-4-4(EFT): power cable:± 4 kV; data cable:± 2 kV IEC61000-4-5(Surge):power cable:CM± 4 kV or DM± 2 kV; data cable:± 4 kV IEC61000-4-6(radio frequency transmission):10 V (150 kHz to 80 MHz) IEC61000-4-8(power frequency magnetic field):100 A or m;1000 A or m ,1 s to 3 s IEC61000-4-9(pulsed magnet field):1000 A or m IEC61000-4-10 (damped oscillation):30 A or m 1 MHz IEC61000-4-12 or 18(shockwave):CM 2.5 kV,DM 1 kV IEC61000-4-16(common-mode transmission):30 V; 300 V,1 s FCC Part 15 or CISPR22(EN55022):Class A IEC61000-6-2(Common Industrial Standard) |
| Mechanical Properties | IEC60068-2-6 (anti vibration)，IEC60068-2-27 (anti shock), IEC60068-2-32 (free fall) |
| Certification | CCC; CE mark, commercial; CE or LVD EN60950; FCC Part 15 Class B; RoHS; |
| Interface | IEEE802.3 X (Full-duplex) Port temperature protection setting Port green Ethernet Energy-saving setting Broadcast storm control based on port speed The speed limit of the message flow in the access port. The minimum particle size is 64 Kbps. |
| PoE Management | PoE working status Delay start of power supply PoE output priority configuration Scheduling of PoE operation and time Total power limit of PoE power supply PoE output power allocation, off& af &at |
| Layer 3 Features | L2+ Network management , IPV4 or IPV6 management L3 soft routing forwarding, Static route, Default route @ 128 pcs, APR @ 1024 pcs |
| VLAN | 4 K VLAN based on port, IEEE802.1q VLAN based on the protocol, VLAN based on MAC Voice VLAN, QinQ configuration Port configuration of Access, Trunk, Hybrid |
| Port Aggregation | LACP, Static aggregation, Max 12 aggregation groups and 8 ports per group. |
| Spanning Tree | STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
| Industrial Ring Network Protocol | G.8032 (ERPS),Recovery time less than 20 ms 250 ring at most, Max 250 devices per-ring. |
| Multicast | MLD Snooping v1 or v2, Multicast VLAN IGMP Snooping v1 or v2, Max 1024 multicast groups, Fast log out |
| Port Mirroring | Bidirectional data mirroring based on port |
| QoS | Flow to based Rate Limiting Flow to based Packet Filtering 8 x Output queues of each port 802.1p or DSCP priority mapping Diff-Serv QoS,Priority Mark or Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) |
| ACL | Port to based Issuing ACL, ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP or UDP Port, TCP or UDP Port Range, and VLAN, etc. |
| Security | IP-MAC-VLAN-Port binding ARP inspection,Anti-DoS attack AAA & RADIUS, MAC learning limit Mac black holes,IP source protection IEEE802.1 X & MAC address authenticationBroadcast storm control,Backup for host datum SSH 2.0, SSL,Port isolation,ARP message speed limit User hierarchical management and password protection |
| DHCP | DHCP Client, DHCP Snooping，DHCP Server,DHCP Relay |
| Management | One-key recovery Cable Diagnose,LLDP Web Management (HTTPS) NTP,System work log,Ping Test CPU instant utilization status view Console or AUX Modem or Telnet or SSH2.0 CLI Download & Management on FTP, TFTP, Xmodem, SFTP, SNMP V1 or V2C or V3 ONV NMS to smart network management system platform(LLDP+SNMP) |
| System | Category 5 Ethernet network cable Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later; TCP or IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
