Overview

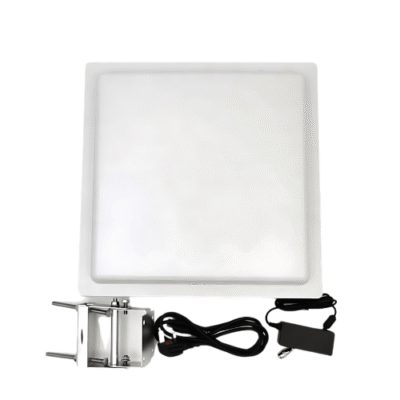

The Inventory Master Long Distance UHF RFID Card Reader with Metal Case Waterproof can be compatible with mult-protocol, integrated design,multi-tag reading, anti-collision, suitable for logistic and warehouse management, car parking system, access control, time attendance, bus transportation etc lots of field, can read and write, fast speed read and recognized. This is a popular integrated reader, Compatible with ISO18000-6C (EPC C1GEN2) and ISO18000-6B. It is an industry grade product for harsh environment, IP-65 protection case for waterproof, easy to install.
Technical Specifications
| Protocol | ISO18000-6B, ISO18000-6C (EPC GEN2) |
| Frequency Range | Standard ISM 902 MHz to 928 MHz or ISM 865 MHz to 868 MHz, other |
| Operation Mode | FHSS or fixed frequency (set by software) |
| RF Power | 0 dBm to 30 dBm, software adjustable |
| Reading Speed | Software Programmable, Average Reading per 64Bits: <6ms |
| Reading Mode | Timing or Touch, Software Programmable |
| Data Ports | Standard: Wiegand26/34, RS485, RS232; software programmableOptional: TCP/IP (RJ45), WIFI |
| Data Input Port | Trigger input one team |
| Reading Range | Max 49.2 ft (15 m) |
| Reading Clue | Buzzer |
| Antenna | Built-in line polarization Antenna, Gain:12dbi |
| Power Supply | DC+ 12 V (Power Adapter) |
| Operation Temp | -4 °F to 176 °F (-20 °C to +80 °C) |
| Dimension | 17.3 in x 17.3 in x 1.9 in (440 mm × 440 mm × 50 mm) |
| Weight | 9.9 lb (4.5 kg) |
