Overview

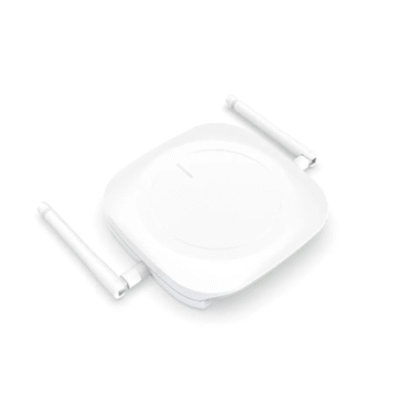

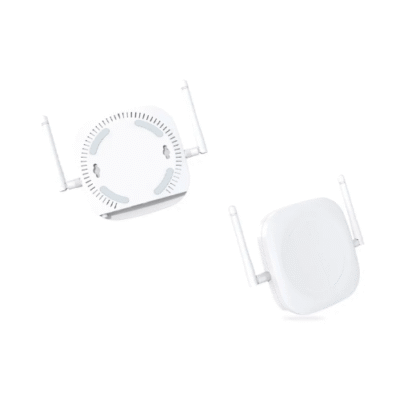

The Inventory Master Lora WAN long range antenna is based on lora WAN protocol, which is embedded with Semitic’s high performance multi-channel transceiver SX 1301, SX 1257 and MTK platform. It is for indoor use and easy for installation. MKGW 2, LW includes two modes, AP and STA as router, offers 2.4 GHz Wi-Fi and wired Ethernet for connecting internet. It can be connected to LoRa WAN terminals in various application nodes, collects useful information and sends the data to cloud server.
Technical Specifications
| Frequency | CN 470, EU 868, AU 915, US 915, AS 923, IN 865, KR 920, EU 433, CN 779 |
| Power Supply | DC 12 V, 1 A, POE (IEEE 802.3 a, f) 42 V to 57 V DC, Micro USB 5 V, 2 A |
| Communication Distance | 9843 ft (3 km) (City Environment) |
| Wi-Fi Communication Distance | 984 ft (300 m) (Open Space) |
| CPU | TR7 688 AB |
| Memory | 128 MDDR, 32 M flash |
| Operating Temperature | 32 °F to 131 °F (0 ℃ to 55 ℃) |
| Dimension | 4.72 in x 4.72 in x 0.89 in (120 mm x 120 mm x 22.5 mm) (without antenna) |
| Weight | 1.10 lb (500 g) |
