Overview

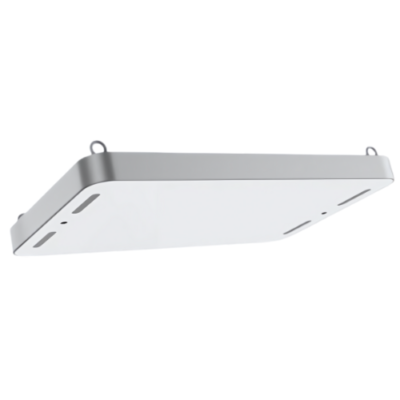

The BRD-17 portal is a high-performance UHF smart device that complies with ISO18000-6C protocol and operates in the 902MHz~928MHz frequency band. It features a phase-controlled high-gain antenna array, fast positioning, automatic direction identification, contact-less triggering, long recognition distance, strong multi-label recognition, anti-interference ability, scalability, and easy installation. It is widely used in clothing stores, supermarket retail, book file management, personnel access management, and intelligent warehousing management.
Technical Specifications
| Material | Aluminum,acrylic |
| Protocol | ISO18000 6C |
| Operating Mode | Fixed frequency or frequency hopping optional |
| Frequency Range | 902 MHz to 928 MHz |
| Antenna Gain | ≥14 dBi |
| Read Rate | >200 reads/s |
| OS | Linux |
| GPIO | 2 out or 2 in |
| Transmit Power | 30 dBm ± 1 dBMAX） |
| Polarization | Circular |
| Beam Scanning Range | Channel length 8m / width 3m |
| Power Supply | DC 12V 5A |
| Operating Temperature | 4 °F to 140 °F (-20 ℃ to 60 ℃) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Humidness | 10 % to 95 % RH no condensation |
