Overview

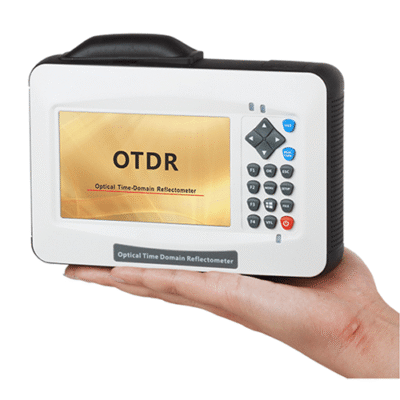

The Inventory Master OTDR FTTH smart handheld is a high cost-effective choice. The dynamic range is from 26 dB to 35 dB, the humanized interface is convenient and quick to operate, With the function of VFL, Power meter, it will be a great helper in the fiber network testing.
Features
- High cost effective OTDR choice
- With online light alarm function
- 5 in (12.7 cm) LCD touch screen
- FLM (Fiber Link Map) function, icon display fiber events
- Support customer customization needs
- One button screenshot function
- OTDR testing with 1650 nm
Technical Specification
| Network FTTX | FTTX |
| Wavelength | 1310 nm or 1550 nm |
| Dead Zone | 3.28 ft or 16.4 ft (1 m or 5 m) |
| Dynamic Range | 30 dB to 28 dB |
| Pulse Width | 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 5 μs, 10 μs, 20 μs |
| Sampling Resolution | Min 1.98 in (0.05 m) |
| Linearity | 0.03 dB |
| LOR | 1.2000 to 1.7000 |
| Memory Capacity | 80,000 groups curve |
| VFL | 10 mW, CW or 2Hz |
| OPM | Calibrated wavelength：850 nm to 1300 nm to 1310 nm to 1490 nm to 1550 nm to 1625 nm to 1650 nm Test range：-60 to +5 dBm |
| Interface | 3 × USB port (Type A × 2，micro-USB × 1） |
| Battery | 7.4V mAh to 3300 mAh lithium battery, Continuous work: 6 hrs (backlight off) Charge time: 3.5 hrs |
| Accessories | Power adapter, Charge cord, Lithium battery, FC adapter, USB cable, Quick guide, Test report, CD, Carrying bag, Wrist strap |
| Optional | SC or LC adapter, Launch cable box |
| Data Storage | Pluggable 8 GB micro-SD card |
| Battery | 5000 mAh lithium battery |
| Working Humidity | 0% to 85% (non-condensing) |
| Display | 5 in (12.7 cm) TFT LCD touch screen |
| Weight | 1.25 lb (570 g) |
