Overview

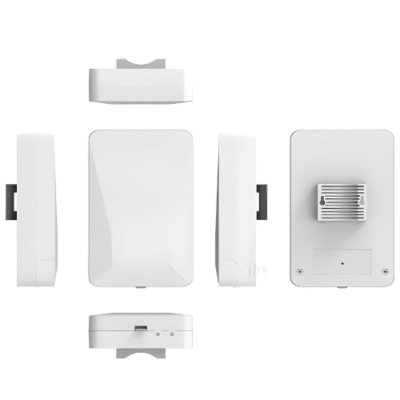

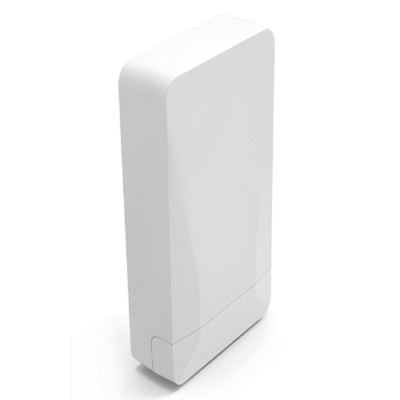

The Inventory Master Outdoor Indoor Wireless Power WIFI Router is a wireless communication product developed based on 3 G or 4 G LTE or 5 G network requirements. Supports 3 G or 4 G LTE or 5 G global frequency bands. Supports 3 G or 4 G LTE or 5 G internet high speed access. Support 5 G NSA. Up to 3.4 Gbps (DL) or 600 Mbps (UL) of NSA mode. 5 G SA maximum 2.4 Gbps (DL) or 1 Gbps (UL) access bandwidth service. It supports a 1 Gigabit Ethernet port. The equipment is designed to meet waterproof and dustproof requirements. Protection class IP 65. At the same time, it meets the requirements of 5 KA lightning protection. Meet the needs of families, enterprises, and chain stores to provide 3 G or 4 G or 5 G high-speed Internet access services.
Features
- An auto-recovery system with data link maintenance
- Multiple VPN tunnels for encryption
- POE power input: DC + 12 or 1.5 A to 36 V or 0.5 A
- Industrial design for harsh environments
- ABS plastic shell, IP 65 protection
- User-friendly web interface
- Central Management Platform support
- Local web UI, remote firmware updates
- Built-in OpenWRT 18.06 OS
Technical Specifications
| 3 G or 4 G or 5 G Data Connectivity | It provides data connectivity on 5 G NR SA and NSA, LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA, and WCDMA networks. |
| 3 G or 4 G Or 5 G Data Rates | 5 G NSA. Max 3.4 Gbps (DL) or 600 Mbps (UL) 5 G SA. Max 2.4 Gbps (DL) or 1 Gbps (UL) LTE. Max 1.6 Gbps (DL) or 200 Mbps (UL) HSPA+. Max 42Mbps (DL)/ 5.76Mbps (UL) CDMA Max 384Kbps (DL)/384Kbps (UL) |
| SIM Card | Supports 1 SIM slot, 1.8 V or 3 V. Or 1 eSIM card. (Optional) |
| CPU | Qualcomm SDX 62, ARM Cortex – A7, 1.8 GHz |
| Memory | NAND FLASH 4 Gb, LPDDR4X 4 Gb |
| Hardware Interface | 2 LAN gigabit Ethernet ports. 1 USB 3.1 port, 1 RJ 11 VOLTE (Optional) |
| Watchdog | Built-in watchdog feature. |
| Key Button | Reset, WPS |
| Protection Level | Ethernet port, Contact electric shock, + or -4 KV, air discharge: + or -8 KV. |
| LED Status Indicator | Power, 5 G, WIFI |
| Power Supply | Power supply input. DC 12 V or 1.5 A |
| Peak Current | Max current. 2.5 A at 12 V |
| Working Current | Max 450 mA, 5.4 W at 12 V |
| Power Consumption | Idle. 120 mA, 1.44 W at 12 V Data link. Max 450 mA, 5.4 W at 12 V Peak. Max 710 mA, 8.52 W at 12 V |
| Antennas | 2 2 MIMO internal antenna, with 50 Ω impedance. |
| WIFI Hotspot Sharing | Supports more than 32 users to share WIFI access to the Internet. |
| Routing | Supports static routing, and multiple routing tables. |
| Bridge | Supports 4 G or 5 G bridge mode features. |
| Multiple APN | Supports multiple APN access networks. |
| System Assurance | Supports system automatic detection mechanism, and automatic recovery of system abnormality or crash. |
| Data Link Assurance | Built-in link maintenance and self-recovery mechanism. |
| Firewall | Support flexible access control of TCP, UDP, and ICMP packets. Supports port Mapping, NAT, etc. feature. |
| DDNS | Supported by some service providers, others can be configured manually. |
| Firmware Update | Supports local Web UI and remote OTA update firmware. |
| VLAN | Supports VLAN feature. |
| Embedded System | OpenWRT 18.06 |
| VPN Feature | Supports Open VPN, IPSEC VPN, PPTP, L2TP, etc VPN features. |
| Temperature | Operating Temperature 32 °F to 122 °F (0 °C to 50 °C), Storage Temperature 14 °F to 131 °F (-10 °C to 55 °C) |
| Environment Humidity | 5 % to 95 %, non-condensation. |
| Ingress Protection | IP 30 |
| Housing | ABS plastic material, white shell. |
| Dimensions | 4.33 in × 4.41 in × 7.68 in (11 cm × 11.2 cm × 19.5 cm) |
| Installations | Desktop placement |
| Weight | 0.82 lb (370 g) |
