Overview

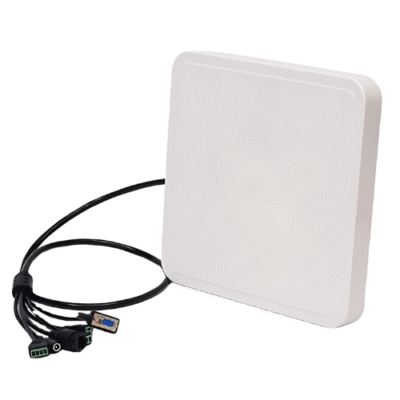

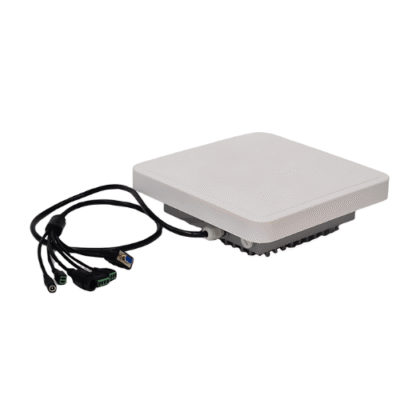

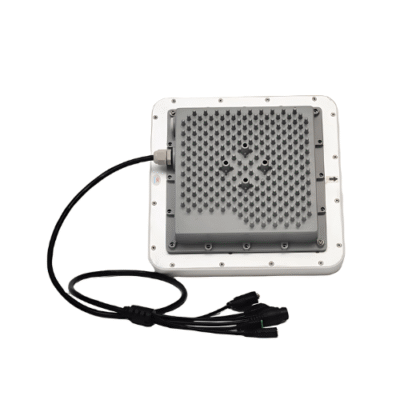

The Inventory Master Passive UHF RFID Reader Chip WIFI is a high-performance UHF ultra-high frequency electronic label all-in-one machine, designed with completely independent intellectual property rights, combined with a proprietary high-efficiency signal processing algorithm, while maintaining a high reading rate, it realizes fast identification of electronic labels. Read and write processing can be widely used in various radio frequency identification (RFID) systems such as logistics, vehicle management, access control systems, anti-counterfeiting systems, and production process control.
Technical Specifications
| Frequency | GB, 920 MHz to 925 MHz; GB, 840 MHz to 845 MHz; FCC, 902 MHz to 928 MHz; ETSI, 865 MHz to 868 MHz; JP, 916 MHz to 920 MHz |
| RFID Air Interface Standards | ISO 18000-6B ISO 18000-6C EPC C1G2 |
| Protection Grade | IP65 |
| Reading Distance | 0 to 98.4 ft (0 to 30 m) |
| Material | ABS + Aluminum |
| Power Supply | DC 12 V (power capacity not less than 60 W) |
| RF Output | 33 dBm (MAX) |
| COM Port | TCP or IP or RS232 RS485 |
| Antenna | 9 dbi, circularly polarized |
| External Interface | Wiegand 26 or 34 interface (optional) |
| Humidity | 5 % to 90 % RH, non-condensing |
| Operating | -4 °F to 158 °F (-20 ℃ to +70 ℃) |
| Storage | -22 °F to 185 °F (-30 ℃ to +85 ℃) |
| Dimensions | 10.16 in x 10.16 in x 3.27 in (258 mm x 258 mm x 83 mm) |
