Description

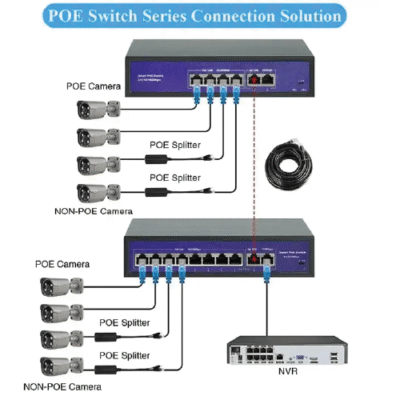

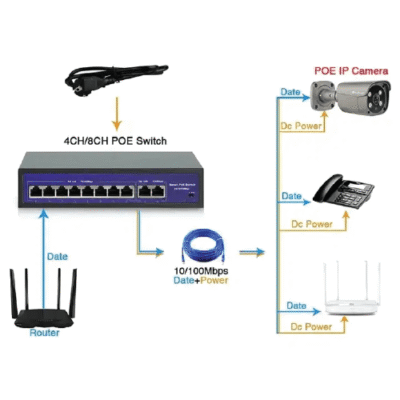

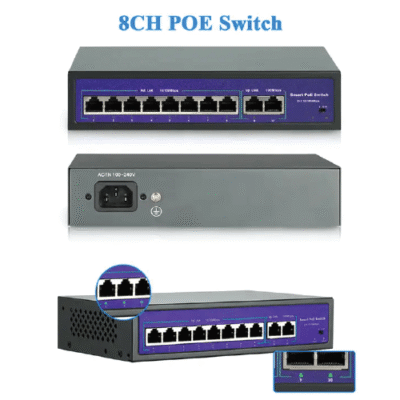

The Inventory Master POE switch for ip cameras is a 48 V standard POE switch, designed to meet the needs of network power supply. It adopts the latest high-speed Ethernet switching chip, ultra-high backplane bandwidth design, and has extremely fast data processing capabilities to improve smooth data transmission performance. With 8 power supply network ports, 2 RJ45 / uplink ports. Among them, all RJ45 ports support network cable power supply.
Features
- Transmission rate of 1-8 Fast Ethernet port
- Independent port and function of current protection
- store-and-forward
Technical Specifications
| Web Standards | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Network Transmission Medium | 10 / 100 / 1000 BASE-TX: Class 5 or above non-screen Shadowing the twisted pair |
| Network Signal Distance | Transfer ≤ 984.25 in (250 m) |
| Back of Bandwidth | 1.6 Gbps Midplane bandwidth |
| Way Forward | 10 BASE-tx: 14880 pps / port, 100 BASE-tx: 148800 pps / port |
| MAC Address | 1K MAC address table |
| Port Functions | Power priority mechanism, fast and forward, MAC automatic learning and aging Ieee802.3x full-duplex flow control and Backpressure half-duplex flow control |
| Packet Forwarding Rate | 1.19 Mpps |

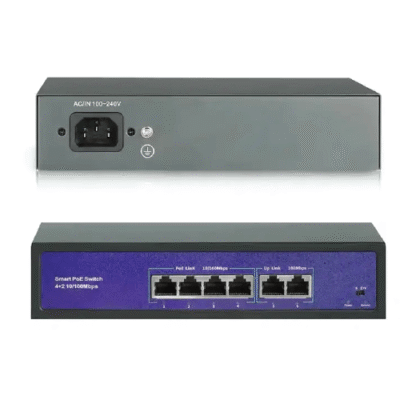

| Interface | 4 POE ports and 2 uplink ports (100 Mbit / s) |
| Drawing Code Switch | Standard mode (S) and Exend+ VLAN |
| Indicator Light | Power indicator: red, 250 m transmission indicator: green |
| Standard | IEEE 802.3af / at |
| Output Power | Stand-up output ≤ 30 W |
| Output Voltage | DC 52 V ±5% |
| PoE Transfer Cable Core | (1 / 2) +, (3 / 6)- line pairs |
| POE Total Power | MAX: 75 W |
| Power | 110 V AC to 240 V AC |
| Environment Temperature | Working: 14 °F to 131 °F (- 10 °C to 55 °C) Storage: – 40 °F to 185 °F (- 40 °C to 85 °C) |
| Environmental Humidity | Work: 10% to 90% (no condensation) Storage: 5% to 95% (no condensation) |
| All Port | The transmission rate of 1 to 8 Fast Ethernet port is 10 / 100 Mbps 53.6 °F to 96.8 °F (12 °C to 36 °C) and 2 uplink 10 / 100 Mbps transmission rate Fast Ethernet port. |
| Security | Independent port and function of current protection |
| Cable Type | 3 types and more than 3 types of twisted pair for 10BaseT (No support for power supply); 5 types and more than 5 types of twisted pair for 100 Base-TX 100 Base-TX. |
| Switch Capacity | 2.0 G |
| Exchange mode | store-and-forward |
| Rate of data signaling | 1 to 8 port 10 / 100Mbps and 2 UPlink port 10 / 100Mbps (Half-duplex mode) |
| Standards compliance | IEEE802.3AF / AT |
| MAC address space | 8K |
| Input Power | 220 V AC to 240 V AC / 120 W |
| Ambient temperature | Operating Temperature: 32 °F to 104 °F (0 °C to 40 °C) / Storage Temperature: – 40 °F to 158 °F (- 40 °C to 70 °C) |

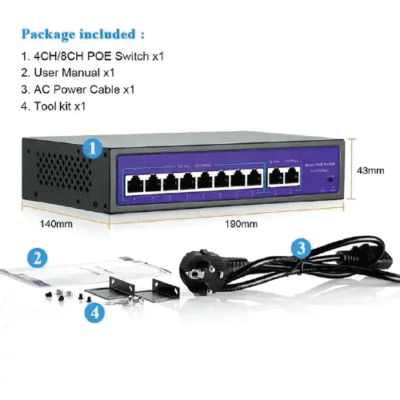

| Mechanical Dimension | 7.52 in x 5.55 in x 1.73 in (191 mm x 141 mm x 44 mm) |
