Overview
The Inventory Master power over ethernet is a new generation of Layer 3 Ethernet switch with high performance, high-end port density and high security developed by H3C Technology Co., LTD. (hereinafter referred to as H3C Company) using professional ASIC technology. It supports IP v4 or IP V6 dual stack management and forwarding. It supports static routing protocols, routing protocols such as RIP, OSPF, BGP, and ISIS, and supports rich management and security features. It is a Layer 3 Ethernet switch for converged service networks. In the campus network, S5590-HI series switches can be used as aggregation layer devices, or as the core of small and medium-sized enterprises; The downward layer provides high-density GE tandem switches, and the upward layer provides 10 Gbit or s, 25 Gbit or s, 40 Gbit or s, and 100 Gbit or s.
Technical Specifications

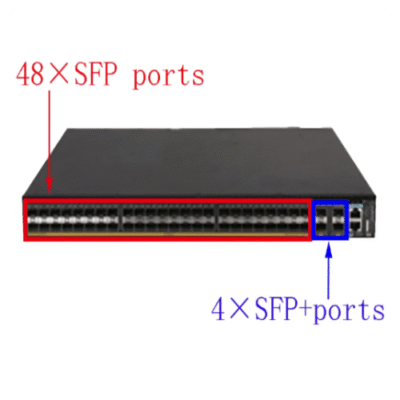

| Port + Power supply | 48 100 or 1000BASE-X SFP, 4 10 G or 1G BASE-X SFP+ ports, 2 slot expansion slots, 2 modular fan slots, 2 pluggable power slots |
| Packet forwarding rate + switching capacity | 2.4 Tbps or 24 Tbps，552 Mpps or 762 Mpps |
| Connect | Ethernet switch |
| Package forwarding rate | 552 Mpps or 762 Mpps |
| Exchange capacity | 2.4 Tbps or 24 Tbps |
| USB port | 1 |
| Expansion board | 2 port 10 gigabit SFP+ interface board 4 port 10 gigabit SFP+ interface board 8 port 10 gigabit SFP+ interface board 2 port 25 GE SFP28 interface board 4 port 25 GE SFP28 interface board 8-port 25 GE SFP28 interface board2 port 40 GE QSFP+ interface board 4 port 40 GE QSFP+ interface board 2 port 100 GE QSFP28 interface board Netstream extension board Eagle Vision Scanner expansion board Firewall board Mini iMC expansion board |
| Input voltage | AC: Rated voltage range: 100 to 240 V AC, 50 or 60 Hz DC: Input rated voltage range: -48 V to -60 V DC |
| Power consumption (static) | 46 W |
| Power consumption (at full load) | 136 W |

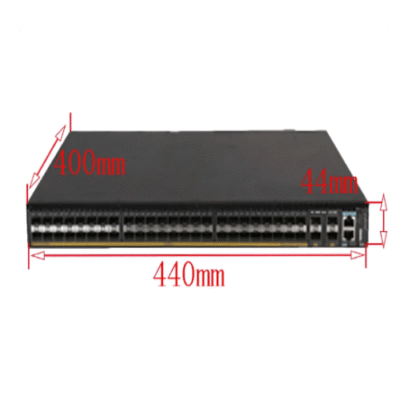

| Size | 1.73 in x 17.32 in x 14.75 in (44 mm × 440 mm × 400 mm) |
| Working environment relative humidity (non-condensation) | 5 % to 95 % |
| Weight | 17.64 lb. (8 kg) |
