Overview

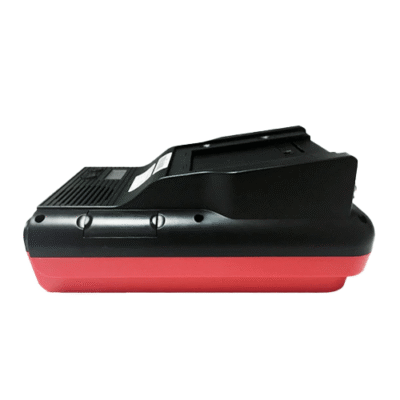

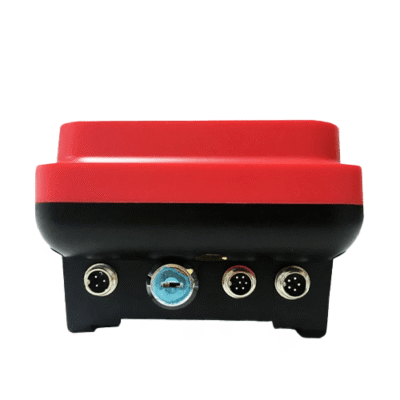

The Inventory Master Qr Code RFID NFC Card Reader GPS offers comprehensive support for smart cards compliant with ISO14443 Type A & B, Mifare Classic, DESFire, and FeliCa standards, leveraging a robust 32-bit ARM Cortex-A7 1 GHz processor. Featuring 4 SAM sockets for Purchase SAMs, it ensures transaction security. Integrated with smart card readers, graphical LCD, audio, LED indicators, and GPS functionality, the P18 is ideal for automatic fare collection systems in buses, trams, and other transportation modes, enabling flexible fare setting based on vehicle location and distance. Additionally, equipped with a barcode scanner, it facilitates multiple cashless payment methods and supports bank card payments via EMV certification.
Features
- Powered by a 32-bit ARM Cortex-A7 processor running at 528 MHz
- Runs on Linux 3.0 operating system
- Features a 160×80 dot matrix LCD display with backlight
- Equipped with 4 LED status indicators and 2 function keys
- Includes a power switch for convenient operation
- Incorporates a built-in buzzer and audio speaker
- Offers a contactless smart card interface and 4 ISO7816 SAM sockets
- Supports RS232 interface and RS485 / Ethernet / USB interfaces
Technical Specifications
| Operating Frequency | 13.56 MHz |
| Protocol | T=0, T=1 |
| Processor | 32-bit ARM Cortex-A7 1GHz |
| DDR (Ram) | 512 MB |
| EMMC (Flash) | 8 GB |
| SPI Flash | 64 MB |
| Fram | 8 KB |
| Supply Voltage | 8 – 40 V DC |
| Supply Current | Max. 2A |
| Over Voltage Protection | Supported |
| Over Current Protection | Supported |
| Rs232 | 3 lines R*D, T*D and GND without flow control |
| Rs485 | 3 lines A, B and GND |
| Ethernet | Built-in 10/100-base-T with RJ45 connector |
| Lan (Tcp/Ip) | Optional |
| Usb | USB 2.0 Host Full Speed |
| Gsm/Gprs/Edge | 900 MHz or 1800 MHz |
| Wifi | IEEE 802.11 b or g or n |
| 3g | WCDMA 900 or 2100MHz |
| Gps | Supported |
| Bluetooth (Optional) | Bluetooth 4.0 Dual mode, including BR, EDR and LE |
| 1D Barcode Scanning | Supported |
| 2D Barcode Scanning | Supported |
| Qr Code Scanning | Supported |
| Standard | ISO-14443 A & B part 1-4, ISO-18092 |
| Protocol | Mi fare® Classic Protocols, T=CL, FeliCa |
| Smart Card Read /Write Speed | Up to 424 kbps |
| Operating Distance | Up to 50 mm (about 1.97 in) |
| Number Of Slots | 4 ID -000 slots |
| Card Connect Slot | Contact |
| Standard | ISO/IEC 7816 Class A, B (5V, 3V) |
| Smart Card Read /Write Speed | 9,600-115,200 bps |
| Firmware Upgradeable Through | RS232 |
| LCD Display | 160×80 dot-matrix LCD display with backlight, 4.3 inch |
| Speaker | Supported |
| Buzzer | Supported |
| LED Status Indicators | 4 LEDs for indicating status (from left most: blue, yellow, green, red) |
| Other Features | Real Time Clock |
| Working Environment | Temperature: -4ºF to 140ºF (-20ºC to 60ºC) |
| Humidity: 5% to 93%(Non-condensing) | |
| Storage Environment | Temperature: -22ºF to 176ºF (-30ºC to 80ºC) |
| Humidity: 5% to 95%(non-condensing) | |
| Dimensions | 227mm (about 8.94 in)×140mm (about 5.51 in)×99mm (about 3.9 in) |
