Overview

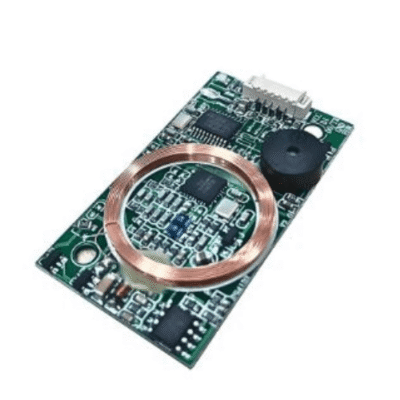

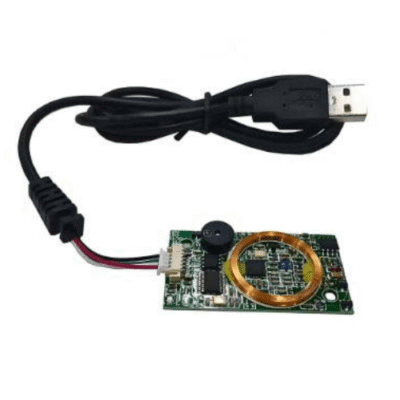

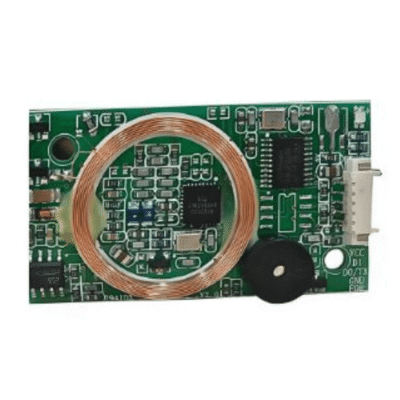

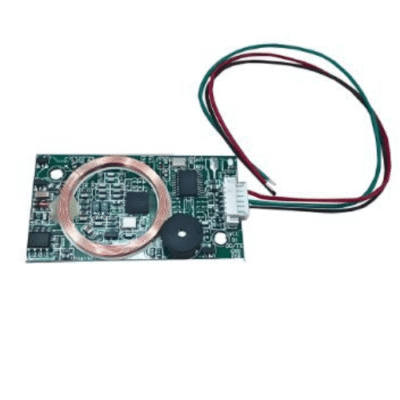

The Inventory Master RFID Module 125 KHz and 13.56 MHz LF HF Reader Writer capable of reading at both 125KHz and 13.56 MHz frequencies. It offers compatibility with EM 4100, Mifare S 50, Mifare Desfire, and Ultralight Cards, providing versatility for various applications. This device features three interface options, making it adaptable to different system requirements. Ideal for projects demanding LF and HF RFID reading and writing capabilities.
Features
- Supports 125 KHz & 13.56 MHz
- EM 4100 or EM 4102
- ISO 14443 A
- Mifare S 50 or Desifre or Ultralight
- CSN card read-only
Technical Specifications
| Frequency | 125 KHz or 13.56 MHz |
| Support Cards | EM 4100 or EM 4102 or S 50 or Ultralight Card |
| Power Voltage | 5 V or 12 V |
| Reading Distance | 1.18 cm to 3.15 cm (Depending on label size and condition) |
| Interface | Wiegand 26 or TTL or USB |
| Antenna | External. Variety of optional specifications |
| Supply Ability | 10000 Units per Week |
| Operating Temperature | -4 °F to 167 °F (-20 °C to 75 °C) |
| Size | 1.85 in x 1.02 in x 0.20 in (47 mm x 26 mm x 5 mm) |
| Single Gross Weight | 0.14 oz (4 g) |
