Overview

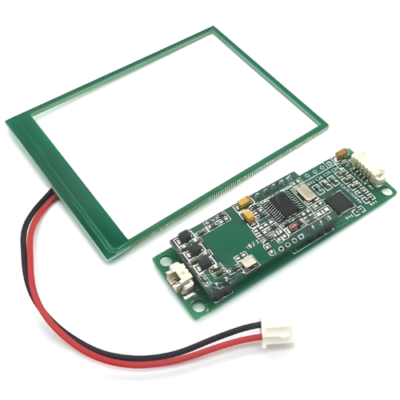

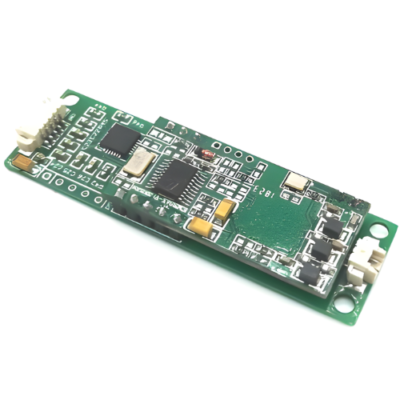

The Inventory Master RFID reader module is a contactless smart card reading and writing module developed based on ISO/IEC14443 -1, -2, -3, -4 and ISO15693 standard protocols. It adopts highly integrated special card reading chip, advanced watchdog and voltage monitoring circuit project design and features a high degree of integration, strong anti-interference ability, small size and more stable performance.
Technical Specifications
| Frequency | 13.56MHz |
| Standard | ISO/IEC 14443-A/B, ISO/IEC 15693 |
| Baud Rate | 9600-115200bit/s (Configurable, default 9600) |
| Interface | TTL |
| Power Supply | 5V |
| Current | < 70mA |
| Read Distance | 0 to 5.51 in (0 to 14cm) (Depending on label size and antenna technology) |
| Operating Temperature | 14℉ to 122℉ (-10℃ to 50℃) |
| Storage Temperature | -4℉ to 176℉ (-20℃ to 80℃) |
| Antenna | External, Variety of optional specification |
| Dimension | 1.50 in × 0.70 in × 0.41 in (38.15mm x 17.85mm x 10.5mm) |
