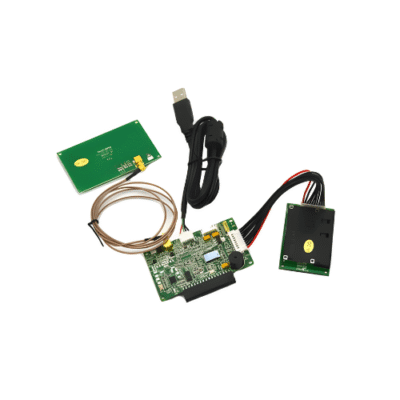

Features
- USB 2.0 full speed
- RS 232 interface
- 4 LED indicators
- Supporting the buzzer
- Contact smart card interface
- Contactless smart card interface
- 4 SAM card slots
- Magnetic stripe reader
Technical Specifications
| Frequency | 13.56 MHz |
| Supply Voltage | DC 5 V |
| Read or Write Speed | 106 Kbps |
| Supply Current | 500 mA |
| Operating Distance | 1.97 in (Up to 50 mm) |
| Operating Temperature | 14 °F to 122 °F (-10 ℃ to 50 ℃) |
| Dimensions | |
| Motherboard | 3.24 in x 1.98 in x 0.54 in (82.5 mm x 50.2 mm x 13.7 mm) |
| Antenna Board | 3.24 in x 1.98 in x 0.36 in (82.5 mm x 50.2 mm x 9.2 mm) |
| LED Board | 2.76 in x 0.63 in x 0.33 in (70 mm x 16 mm x 8.5 mm) |
| Contact Board | 2.76 in x 0.63 in x 0.36 in (70 mm x 16 mm x 9.1 mm) |
| MSR Board | 3.56 in x 0.83 in x 0.94 in (90.3 mm x 21.1 mm x 24 mm) |
| Weight | |
| Mother Board | 0.99 oz (28 g) |
| Antenna Board | 0.52 oz (14.8 g) |
| LED Board | 0.16 oz (4.6 g) |
| Contact Board | 0.81 oz (22.8 g) |
| MSR Board | 0.69 oz (19.6 g) |
