The Inventory Master RFID Short Range Wide Voltage Access Control Reader 13.56 MHz
The Inventory Master RFID Short Range Wide Voltage Access Control Reader 13.56 MHz
  1. The Inventory Master RFID Short Range Wide Voltage Access Control Reader 13.56 MHz
  2. The Inventory Master RFID Short Range Wide Voltage Access Control Reader 13.56 MHz

The Inventory Master RFID Short Range Wide Voltage Access Control Reader 13.56 MHz

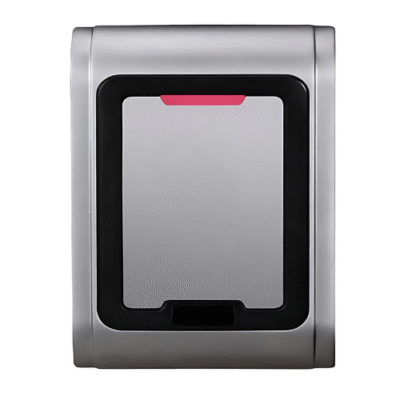

This RFID Short Range Wide Voltage Access Control Reader has a frequency of 13.56 MHz, a size of 120×80×25mm and a reading range up to 10cm.

SKU: TIMHF-3326 Category:

Technical Specifications

Frequency125kHz, 13.56 MHz
ProtocolWiegand 26, Wiegand 34
Working VoltageDC 9V-16V. Standard 12V
Working Current70mA
Communication Distance100 Meters
WaterproofIP68
Size4.724 in × 3.150 in × 0.984 in (120×80×25(mm))
Response SpeedLess than 0.2 second
Proximity Range1.968505 in to 3.93701 in (5 to 10cm)
Ambient Temperature-13 F to 167 F (-25º C to 75º C)
Ambient Humidity10%-90%
