Overview

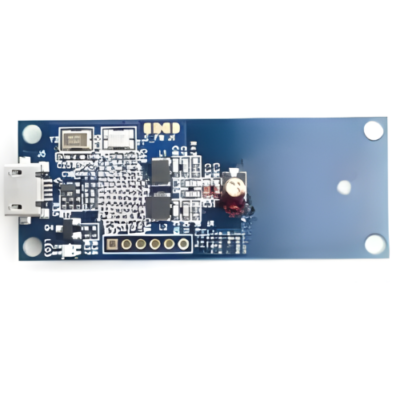

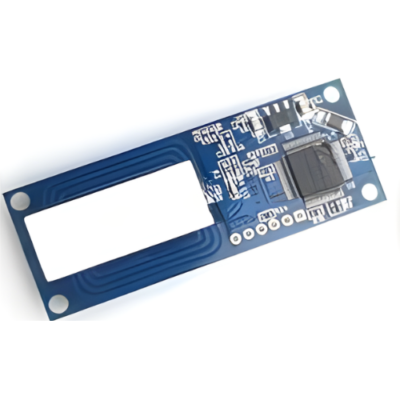

The Inventory Master RFID USB NFC Reader Module supports ISO 14443 Type A and B cards, FeliCa, and ISO 18092–compliant NFC tags. It also supports other NFC devices with an access speed of up to 424 Kbps and proximity operating distance of up to 30 mm (depending on tag type used). It also has an anti-collision feature that ensures only one card is accessed when multiple cards are presented simultaneously. It is PC/SC-compliant and firmware upgradeable. Its small size allows it to be integrated to compact machines. It can be used with a detachable micro-USB cable that allows it flexibility to be located far from the USB host interface.
Technical Specifications
| Frequency | 13.56Mhz |
| Protocol | ISO 14443A |
| Protocol | USB CCID |
| Connector Type | Micro USB |
| Power Source | From USB port |
| Speed | USB Full Speed (12 Mbps) |
| Cable Length | 3.28 ft. (1.0m), Detachable (Optional) |
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa |
| Protocol | ISO14443-4 Compliant Cards, T=CL ISO 18092, NFC Tags FeliCa |
| Antenna | 0.78 in × 0.86 in (20 mm x 22 mm) |
| Device Driver Operating System Support | Windows®, Linux®, MAC OS®, Solaris, Android™ |
| Dimensions | 2.04 in × 0.78 in × 0.23 in (52.0 mm x 20.0 mm x 6.0 mm) |
| Weight | 0.12 oz. (3.65 g) |
