Overview

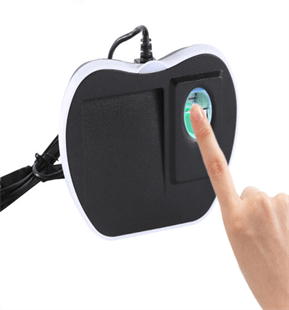

The Inventory Master RS232 RFID Desktop Biometric Fingerprint Reader is a USB fingerprint scanner and card issue device that provides a simple and efficient way to register user fingerprints and card numbers with Software. This device can capture fingerprint image or read card serial number (ID/MF) directly and upload to the system by USB interface. ZK8500 would save money as it can work as ZK4500+CR10E+CR10M, and also can save time. It supports Windows 2000/XP/2003/Vista/7(32/64bit) and Linux OS. We provide developer with SDK.
Features
- Multi-function fingerprint collector and card issuer together; with multi frequency 125KHz & 13.56 MHz;
• Optical sensor with excellent adaption for dry, wet, harsh fingerprint;
• Read EM ID card, Read-write MF card; - High-performance, maintenance-free optical fingerprint sensor.
- High quality industrial-class ABS plastic material with scratchproof texture surface treatment
- High speed USB interface
- LED indicates the status of the device
- Driver CD included
- Available SDK for secondary development
Technical Specifications
| Frequency | 13.56 MHZ |
| Power Supply | 110/220 VAC to 12VDC/1.5A |
| Identification | Farr ≤ 0.01% Far ≤ 0.0001% |
| Identification Speed | ≤ 1s |
| Capacity | Cards: 10,000, Logs:100,000 |
| Power Voltage | 5V |
| Power Current | 200mA |
| Image Resolution | 512dpi |
| Collecting Area | 0.6062994in × 0.7086618in (15.4 x 18mm) |
| Image Size | 280×360pixel |
| Verification Speed | ≤ 0.5s |
| Specification | 0.82677in x 0.590551in x 0.295276in (21 x 15 x 7.5mm) |
| Working Temperature | 32 F to 122 F (0°C to 50°C) |
| Operating Humidity | 20% to 80% R H |
| Reding Distance | 39.3701in to196.8505in (1 to 5 m) |
